1.1.1. UNIX

In order to understand the popularity of Linux, we need to travel back in time, about 30 years ago...

Imagine computers as big as houses, even stadiums. While the sizes of those computers posed substantial problems, there was one thing that made this even worse: every computer had a different operating system. Software was always customized to serve a specific purpose, and software for one given system didn't run on another system. Being able to work with one system didn't automatically mean that you could work with another. It was difficult, both for the users and the system administrators.

Computers were extremely expensive then, and sacrifices had to be made even after the original purchase just to get the users to understand how they worked. The total cost of IT was enormous.

Technologically the world was not quite that advanced, so they had to live with the size for another decade. In 1969, a team of developers in the Bell Labs laboratories started working on a solution for the software problem, to address these compatibility issues. They developed a new operating system, which was

1. Simple and elegant.

2. Written in the C programming language instead of in assembly code.

3. Able to recycle code.

The Bell Labs developers named their project "UNIX."

The code recycling features were very important. Until then, all commercially available computer systems were written in a code specifically developed for one system. UNIX on the other hand needed only a small piece of that special code, which is now commonly named the kernel. This kernel is the only piece of code that needs to be adapted for every specific system and forms the base of the UNIX system. The operating system and all other functions were built around this kernel and written in a higher programming language, C. This language was especially developed for creating the UNIX system. Using this new technique, it was much easier to develop an operating system that could run on many different types of hardware.

The software vendors were quick to adapt, since they could sell ten times more software almost effortlessly. Weird new situations came in existence: imagine for instance computers from different vendors communicating in the same network, or users working on different systems without the need for extra education to use another computer. UNIX did a great deal to help users become compatible with different systems.

Throughout the next couple of decades the development of UNIX continued. More things became possible to do and more hardware and software vendors added support for UNIX to their products.

UNIX was initially found only in very large environments with mainframes and minicomputers (note that a PC is a "micro" computer). You had to work at a university, for the government or for large financial corporations in order to get your hands on a UNIX system.

But smaller computers were being developed, and by the end of the 80's, many people had home computers. By that time, there were several versions of UNIX available for the PC architecture, but none of them were truly free.

1.1.2. Linus and Linux

Linus Torvalds, a young man studying computer science at the university of Helsinki, thought it would be a good idea to have some sort of freely available academic version of UNIX, and promptly started to code.

He started to ask questions, looking for answers and solutions that would help him get UNIX on his PC. Below is one of his first posts in comp.os.minix, dating from 1991:

From: torvalds@klaava.Helsinki.FI (Linus Benedict Torvalds)
Newsgroups: comp.os.minix
Subject: Gcc-1.40 and a posix-question
Message-ID: <1991Jul3.100050.9886@klaava.Helsinki.FI>
Date: 3 Jul 91 10:00:50 GMT
Hello netlanders,
Due to a project I'm working on (in minix), I'm interested in the posix
standard definition. Could somebody please point me to a (preferably)
machine-readable format of the latest posix rules? Ftp-sites would be
nice.

From the start, it was Linus' goal to have a free system that was completely compliant with the original UNIX. That is why he asked for POSIX standards, POSIX still being the standard for UNIX.

In those days plug-and-play wasn't invented yet, but so many people were interested in having a UNIX system of their own, that this was only a small obstacle. New drivers became available for all kinds of new hardware, at a continuously rising speed. Almost as soon as a new piece of hardware became available, someone bought it and submitted it to the Linux test, as the system was gradually being called, releasing more free code for an ever wider range of hardware. These coders didn't stop at their PC's; every piece of hardware they could find was useful for Linux.

Back then, those people were called "nerds" or "freaks", but it didn't matter to them, as long as the supported hardware list grew longer and longer. Thanks to these people, Linux is now not only ideal to run on new PC's, but is also the system of choice for old and exotic hardware that would be useless if Linux didn't exist.

Two years after Linus' post, there were 12000 Linux users. The project, popular with hobbyists, grew steadily, all the while staying within the bounds of the POSIX standard. All the features of UNIX were added over the next couple of years, resulting in the mature operating system Linux has become today. Linux is a full UNIX clone, fit for use on workstations as well as on middle-range and high-end servers. Today, all the important players on the hard- and software market each have their team of Linux developers; at your local dealer's you can even buy pre-installed Linux systems with official support.

1.1.3. Current application of Linux systems

Today Linux has joined the desktop market. Linux developers concentrated on networking and services in the beginning, and office applications have been the last barrier to be taken down. We don't like to admit that Microsoft is ruling this market, so plenty of alternatives have been started over the last couple of years to make Linux an acceptable choice as a workstation, providing an easy user interface and MS compatible office applications like word processors, spreadsheets, presentations and the like.

On the server side, Linux is well-known as a stable and reliable platform, providing database and trading services for companies like Amazon, the well-known online bookshop, US Post Office, the German army and such. Especially Internet providers and Internet service providers have grown fond of Linux as firewall, proxy- and web server, and you will find a Linux box within reach of every UNIX system administrator who appreciates a comfortable management station. Clusters of Linux machines are used in the creation of movies such as "Titanic", "Shrek" and others. In post offices, they are the nerve centers that route mail and in large search engine, clusters are used to perform internet searches.These are only a few of the thousands of heavy-duty jobs that Linux is performing day-to-day across the world.

It is also worth to note that modern Linux not only runs on workstations, mid- and high-end servers, but also on "gadgets" like PDA's, mobiles, a shipload of embedded applications and even on experimental wristwatches. This makes Linux the only operating system in the world covering such a wide range of hardware.

1.2.1. Is Linux difficult?

Whether Linux is difficult to learn depends on the person you're asking. Experienced UNIX users will say no, because Linux is an ideal operating system for power-users and programmers, because it has been and is being developed by such people.

Everything a good programmer can wish for is available: compilers, libraries, development and debugging tools. These packages come with every standard Linux distribution. The C-compiler is included for free, all the documentation and manuals are there, and examples are often included to help you get started in no time. It feels like UNIX and switching between UNIX and Linux is a natural thing.

In the early days of Linux, being an expert was kind of required to start using the system. Those who mastered Linux felt better than the rest of the "lusers" who hadn't seen the light yet. It was common practice to tell a beginning user to "RTFM" (read the manuals). While the manuals were on every system, it was difficult to find the documentation, and even if someone did, explanations were in such technical terms that the new user became easily discouraged from learning the system.

The Linux-using community started to realize that if Linux was ever to be an important player on the operating system market, there had to be some serious changes in the accessibility of the system.

1.2.2. Linux for non-experienced users

Companies such as RedHat, SuSE and Mandrake have sprung up, providing packaged Linux distributions suitable for mass consumption. They integrated a great deal of graphical user interfaces (GUIs), developed by the community, in order to ease management of programs and services. As a Linux user today you have all the means of getting to know your system inside out, but it is no longer necessary to have that knowledge in order to make the system comply to your requests.

Nowadays you can log in graphically and start all required applications without even having to type a single character, while you still have the ability to access the core of the system if needed. Because of its structure, Linux allows a user to grow into the system: it equally fits new and experienced users. New users are not forced to do difficult things, while experienced users are not forced to work in the same way they did when they first started learning Linux.

While development in the service area continues, great things are being done for desktop users, generally considered as the group least likely to know how a system works. Developers of desktop applications are making incredible efforts to make the most beautiful desktops you've ever seen, or to make your Linux machine look just like your former MS Windows or MacIntosh workstation. The latest developments also include 3D acceleration support and support for USB devices, single-click updates of system and packages, and so on. Linux has these, and tries to present all available services in a logical form that ordinary people can understand. Below is a short list containing some great examples; these sites have a lot of screenshots that will give you a glimpse of what Linux on the desktop can be like:

• http://ximian.com/products/desktop/screenshots.html

• http://kde.org/screenshots/

• http://www.codeweavers.com/products/office/

1.3.1. Open Source

The idea behind Open Source software is rather simple: when programmers can read, distribute and change code, the code will mature. People can adapt it, fix it, debug it, and they can do it at a speed that dwarfs the performance of software developers at conventional companies. This software will be more flexible and of a better quality than software that has been developed using the conventional channels, because more people have tested it in more different conditions than the closed software developer ever can.

The Open Source initiative started to make this clear to the commercial world, and very slowly, commercial vendors are starting to see the point. While lots of academics and technical people have already been convinced for 20 years now that this is the way to go, commercial vendors needed applications like the Internet to make them realize they can profit from Open Source. Now Linux has grown past the stage where it was almost exclusively an academic system, useful only to a handful of people with a technical background. Now Linux provides more than the operating system: there is an entire infrastructure supporting the chain of effort of creating an operating system, of making and testing programs for it, of bringing everything to the users, of supplying maintenance, updates and support and customizations, etcetera. Today, Linux is ready to accept the challenge of a fast-changing world.

1.3.2. Ten years of experience at your service

While Linux is probably the most well-known Open Source initiative, there is another project that contributed enormously to the popularity of the Linux operating system. This project is called SAMBA, and its achievement is the reverse engineering of the Server Message Block (SMB)/Common Internet File System (CIFS) protocol used for file- and print-serving on PC-related machines, natively supported by MS Windows NT and OS/2, and Linux. Packages are now available for almost every system and provide interconnection solutions in mixed environments using MS Windows protocols: Windows-compatible (up to and includingWinXP) file- and print-servers.

Maybe even more successful than the SAMBA project is the Apache HTTP server project. The server runs on UNIX, Windows NT and many other operating systems. Originally known as "A PAtCHy server", based on existing code and a series of "patch files", the name for the matured code deserves to be connoted with the native American tribe of the Apache, well-known for their superior skills in warfare strategy and inexhaustible endurance. Apache has been shown to be substantially faster, more stable and more feature-full than many other web servers. Apache is run on sites that get millions of visitors per day, and while no official support is provided by the developers, the Apache user community provides answers to all your questions. Commercial support is now being provided by a number of third parties.

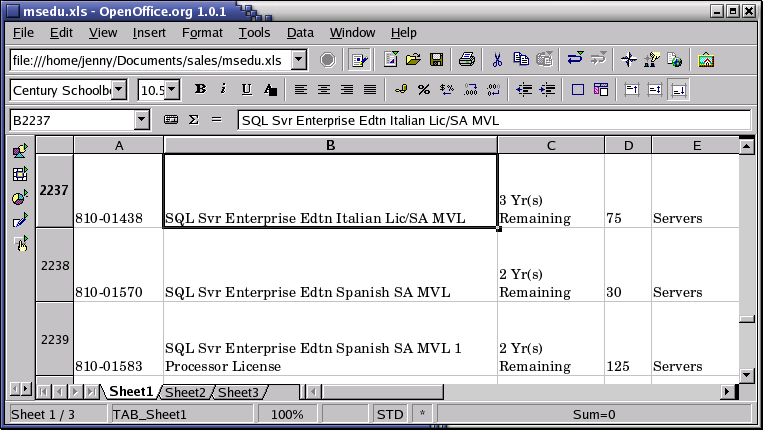

In the category of office applications, a choice of MS Office suite clones is available, ranging from partial to full implementations of the applications available on MS Windows workstations. These initiatives helped a great deal to make Linux acceptable for the desktop market, because the users don't need extra training to learn how to work with new systems. With the desktop comes the praise of the common users, and not only their praise, but also their specific requirements, which are growing more intricate and demanding by the day.

The Open Source community, consisting largely of people who have been contributing for over half a decade, assures Linux' position as an important player on the desktop market as well as in general IT application. Paid employees and volunteers alike are working diligently so that Linux can maintain a position in the market. The more users, the more questions. The Open Source community makes sure answers keep coming, and watches the quality of the answers with a suspicious eye, resulting in ever more stability and accessibility.

Listing all the available Linux software is beyond the scope of this guide, as there are tens of thousands of packages. Throughout this course we will present you with the most common packages, which are almost all freely available. In order to take away some of the fear of the beginning user, here's a screenshot of one of your most-wanted programs. You can see for yourself that no effort has been spared to make users who are switching from Windows feel at home:

1.4.1. Linux Pros

A lot of the advantages of Linux are a consequence of Linux' origins, deeply rooted in UNIX, except for the first advantage, of course:

• Linux is free:

  As in free beer, they say. If you want to spend absolutely nothing, you don't even have to pay the price of a CD. Linux can be downloaded in its entirety from the Internet completely for free. No registration fees, no costs per user, free updates, and freely available source code in case you want to change the behavior of your system.

  Most of all, Linux is free as in free speech:

  The license commonly used is the GNU Public License (GPL). The license says that anybody who may want to do so, has the right to change Linux and eventually to redistribute a changed version, on the one condition that the code is still available after redistribution. In practice, you are free to grab a kernel image, for instance to add support for teletransportation machines or time travel and sell your new code, as long as your customers can still have a copy of that code.

• Linux is portable to any hardware platform:

  A vendor who wants to sell a new type of computer and who doesn't know what kind of OS his new machine will run (say the CPU in your car or washing machine), can take a Linux kernel and make it work on his hardware, because documentation related to this activity is freely available.

• Linux was made to keep on running:

  As with UNIX, a Linux system expects to run without rebooting all the time. That is why a lot of tasks are being executed at night or scheduled automatically for other calm moments, resulting in higher availability during busier periods and a more balanced use of the hardware. This property allows for Linux to be applicable also in environments where people don't have the time or the possibility to control their systems night and day.

• Linux is secure and versatile:

  The security model used in Linux is based on the UNIX idea of security, which is known to be robust and of proven quality. But Linux is not only fit for use as a fort against enemy attacks from the Internet: it will adapt equally to other situations, utilizing the same high standards for security. Your development machine or control station will be as secure as your firewall.

• Linux is scalable:

  From a Palmtop with 2 MB of memory to a petabyte storage cluster with hundreds of nodes: add or remove the appropriate packages and Linux fits all. You don't need a supercomputer anymore, because you can use Linux to do big things using the building blocks provided with the system. If you want to do little things, such as making an operating system for an embedded processor or just recycling your old 486, Linux will do that as well.

• The Linux OS and Linux applications have very short debug-times:

  Because Linux has been developed and tested by thousands of people, both errors and people to fix them are found very quickly. It often happens that there are only a couple of hours between discovery and fixing of a bug.

1.4.2. Linux Cons

• There are far too many different distributions:

  "Quot capites, tot rationes", as the Romans already said: the more people, the more opinions. At first glance, the amount of Linux distributions can be frightening, or ridiculous, depending on your point of view. But it also means that everyone will find what he or she needs. You don't need to be an expert to find a suitable release.

  When asked, generally every Linux user will say that the best distribution is the specific version he is using. So which one should you choose? Don't worry too much about that: all releases contain more or less the same set of basic packages. On top of the basics, special third party software is added making, for example, TurboLinux more suitable for the small and medium enterprise, RedHat for servers and SuSE for workstations. However, the differences are likely to be very superficial. The best strategy is to test a couple of distributions; unfortunately not everybody has the time for this. Luckily, there is plenty of advice on the subject of choosing your Linux. One place is LinuxJournal, which discusses hardware and support, among many other subjects. The Installation HOWTO also discusses choosing your distribution.

• Linux is not very user friendly and confusing for beginners:

  In light of its popularity, considerable effort has been made to make Linux even easier to use, especially for new users. More information is being released daily, such as this guide, to help fill the gap for documentation available to users at all levels.

• Is an Open Source product trustworthy?

  How can something that is free also be reliable? Linux users have the choice whether to use Linux or not, which gives them an enormous advantage compared to users of proprietary software, who don't have that kind of freedom. After long periods of testing, most Linux users come to the conclusion that Linux is not only as good, but in many cases better and faster that the traditional solutions. If Linux were not trustworthy, it would have been long gone, never knowing the popularity it has now, with millions of users. Now users can influence their systems and share their remarks with the community, so the system gets better and better every day. It is a project that is never finished, that is true, but in an ever changing environment, Linux is also a project that continues to strive for perfection.

1.5.1. Linux and GNU

Although there are a large number of Linux implementations, you will find a lot of similarities in the different distributions, if only because every Linux machine is a box with building blocks that you may put together following your own needs and views. Installing the system is only the beginning of a longterm relationship. Just when you think you have a nice running system, Linux will stimulate your imagination and creativeness, and the more you realize what power the system can give you, the more you will try to redefine its limits.

Linux may appear different depending on the distribution, your hardware and personal taste, but the fundamentals on which all graphical and other interfaces are built, remain the same. The Linux system is based on GNU tools (Gnu's Not UNIX), which provide a set of standard ways to handle and use the system. All GNU tools are open source, so they can be installed on any system. Most distributions offer pre-compiled packages of most common tools, such as RPM packages on RedHat and dpkg packages on Debian, so you needn't be a programmer to install a package on your system. However, if you are and like doing things yourself, you will enjoy Linux all the better, since most distributions come with a complete set of development tools, allowing installation of new software purely from source code. This setup also allows you to install software even if it does not exist in a pre-packaged form suitable for your system.

A list of common GNU software:

• Bash: The GNU shell

• GCC: The GNU C Compiler

• GDB: The GNU Debugger

• Findutils: to search and find files

• Fontutils: to convert fonts from one format to another or make new fonts

• The Gimp: GNU Image Manipulation Program

• Gnome: the GNU desktop environment

• Emacs: a very powerful editor

• Ghostscript and Ghostview: interpreter and graphical frontend for PostScript files.

• GNU Photo: software for interaction with digital cameras

• Octave: a programming language, primarily intended to perform numerical computations and image processing.

• GNU SQL: relational database system

• Radius: a remote authentication and accounting server

• ...

Many commercial applications are available for Linux, and for more information about these packages we refer to their specific documentation. Throughout this guide we will only discuss freely available software, which comes (in most cases) with a GNU license.

To install missing or new packages, you will need some form of software management. The most common implementations include RPM, dpkg and Ximian Red Carpet. RPM is the RedHat Package Manager, which is used on a variety of Linux systems, eventhough the name does not suggest this. Dpkg is the Debian package management system, which uses an interface called apt-get, that can manage RPM packages as well. Ximian Red Carpet is a third party implementation of RPM with a graphical front-end. Other third party software vendors may have their own installation procedures, sometimes resembling the InstallShield and such, as known on MS Windows and other platforms. As you advance into Linux, you will likely get in touch with one or more of these programs.

1.5.2. GNU/Linux

The Linux kernel (the bones of your system, see Section 3.2.3.1) is not part of the GNU project but uses the same license as GNU software. A great majority of utilities and development tools (the meat of your system), which are not Linux-specific, are taken from the GNU project. Because any usable system must contain both the kernel and at least a minimal set of utilities, some people argue that such a system should be called a GNU/Linux system.

In order to obtain the highest possible degree of independence between distributions, this is the sort of Linux that we will discuss throughout this course. If we are not talking about a GNU/Linux system, the specific distribution, version or program name will be mentioned.

1.5.3. Which distribution should I install?

Prior to installation, the most important factor is your hardware. Since every Linux distribution contains the basic packages and can be built to meet almost any requirement (because they all use the Linux kernel), you only need to consider if the distribution will run on your hardware. LinuxPPC for example has been made to run on MacIntosh and other PowerPCs and does not run on an ordinary x86 based PC. LinuxPPC does run on the new Macs, but you can't use it for some of the older ones with ancient bus technology. Another tricky case is Sun hardware, which could be an old SPARC CPU or a newer UltraSparc, both requiring different versions of Linux.

Some Linux distributions are optimized for certain processors, such as Athlon CPUs, while they will at the same time run decent enough on the standard 486, 586 and 686 Intel processors. Sometimes distributions for special CPUs are not as reliable, since they are tested by fewer people.

Most Linux distributions offer a set of programs for generic PCs with special packages containing optimized kernels for the x86 Intel based CPUs. These distributions are well-tested and maintained on a regular basis, focusing on reliant server implementation and easy installation and update procedures. Examples are RedHat, SuSE and Mandrake, which are by far the most popular Linux systems and generally considered easy to handle for the beginning user, while not blocking professionals from getting the most out of their Linux machines. Linux also runs decently on laptops and middle-range servers. Drivers for new hardware are included only after extensive testing, which adds to the stability of a system.

While the standard desktop might be Gnome on one system, another might offer KDE by default. Generally, both Gnome and KDE are available for all major Linux distributions. Other window and desktop managers are available for more advanced users.

The standard installation process allows users to choose between different basic setups, such as a workstation, where all packages needed for everyday use and development are installed, or a server installation, where different network services can be selected. Expert users can install every combination of packages they want during the initial installation process.

The goal of this guide is to apply to all Linux distributions. For your own convenience, however, it is strongly advised that beginners stick to a mainstream distribution, supporting all common hardware and applications by default. The following are very good choices for novices:

• Fedora Linux

• SuSE Linux

• Mandrake

• Knoppix: an operating system that runs from your CD-ROM, you don't need to install anything.

Downloadable ISO-images can be obtained from LinuxISO.org. The main distributions can be purchased in any decent computer shop.

2.1.1. Introduction

In order to work on a Linux system directly, you will need to provide a user name and password. You always need to authenticate to the system. As we already mentioned in the exercise from Chapter 1, most PC-based Linux systems have two basic modes for a system to run in: either quick and sober in text console mode, which looks like DOS with mouse, multitasking and multi-user features, or in graphical console mode, which looks better but eats more system resources.

2.1.2. Graphical mode

This is the default nowadays on most desktop computers. You know you will connect to the system using graphical mode when you are first asked for your user name, and then, in a new window, to type your password.

To log in, make sure the mouse pointer is in the login window, provide your user name and password to the system and click OK or press Enter.

Careful with that root account!

It is generally considered a bad idea to connect (graphically) using the root user name, the system adminstrator's account, since the use of graphics includes running a lot of extra programs, in root's case with a lot of extra permissions. To keep all risks as low as possible, use a normal user account to connect graphically. But there are enough risks to keep this in mind as a general advice, for all use of the root account: only log in as root when extra privileges are required.

After entering your user name/password combination, it can take a little while before the graphical environment is started, depending on the CPU speed of your computer, on the software you use and on your personal settings.

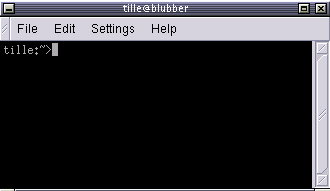

To continue, you will need to open a terminal window or xterm for short (X being the name for the underlying software supporting the graphical environment). This program can be found in the Applications->Utilities, System Tools or Internet menu, depending on what window manager you are using. There might be icons that you can use as a shortcut to get an xterm window as well, and clicking the right mouse button on the desktop background will usually present you with a menu containing a terminal window application.

While browsing the menus, you will notice that a lot of things can be done without entering commands via the keyboard. For most users, the good old point-'n'-click method of dealing with the computer will do. But this guide is for future network and system administrators, who will need to meddle with the heart of the system. They need a stronger tool than a mouse to handle all the tasks they will face. This tool is the shell, and when in graphical mode, we activate our shell by opening a terminal window.

The terminal window is your control panel for the system. Almost everything that follows is done using this simple but powerful text tool. A terminal window should always show a command prompt when you open one. This terminal shows a standard prompt, which displays the user's login name, and the current working directory, represented by the twiddle (~):

Another common form for a prompt is this one:

[user@host dir]

In the above example, user will be your login name, hosts the name of the machine you are working on, and dir an indication of your current location in the file system.

Later we will discuss prompts and their behavior in detail. For now, it suffices to know that prompts can display all kinds of information, but that they are not part of the commands you are giving to your system.

To disconnect from the system in graphical mode, you need to close all terminal windows and other applications. After that, hit the logout icon or find Log Out in the menu. Closing everything is not really necessary, and the system can do this for you, but session management might put all currently open applications back on your screen when you connect again, which takes longer and is not always the desired effect. However, this behavior is configurable.

When you see the login screen again, asking to enter user name and password, logout was successful.

2.1.3. Text mode

You know you're in text mode when the whole screen is black, showing (in most cases white) characters. A text mode login screen typically shows some information about the machine you are working on, the name of the machine and a prompt waiting for you to log in:

RedHat Linux Release 8.0 (Psyche)

blast login: _

The login is different from a graphical login, in that you have to hit the Enter key after providing your user name, because there are no buttons on the screen that you can click with the mouse. Then you should type your password, followed by another Enter. You won't see any indication that you are entering something, not even an asterisk, and you won't see the cursor move. But this is normal on Linux and is done for security reasons.

When the system has accepted you as a valid user, you may get some more information, called the message of the day, which can be anything. Additionally, it is popular on UNIX systems to display a fortune cookie, which contains some general wise or unwise (this is up to you) thoughts. After that, you will be given a shell, indicated with the same prompt that you would get in graphical mode.

	Don't log in as root
	Also in text mode: log in as root only to do setup and configuration that absolutely requires administrator privileges, such as adding users, installing software packages, and performing network and other system configuration. Once you are finished, immediately leave the special account and resume your work as a non-privileged user.

Logging out is done by entering the logout command, followed by Enter. You are successfully disconnected from the system when you see the login screen again.

	Don't hit the power button!
	Don't power-off the computer after logging out. It is not meant to be shut off without application of the proper procedures for halting the system. Powering it off without going through the halting process might cause severe damage!

Now that we know how to connect to and disconnect from the system, we're ready for our first commands.

2.2.1. The commands

These are the quickies, which we need to get started; we will discuss them later in more detail.

2.2.2. General remarks

You type these commands after the prompt, in a terminal window in graphical mode or in text mode, followed by Enter.

Commands can be issued by themselves, such as ls. A command behaves different when you specify an option, usually preceded with a dash (-), as in ls -a. The same option character may have a different meaning for another command. GNU programs take long options, preceded by two dashes (--), like ls --all. Some commands have no options.

The argument(s) to a command are specifications for the object(s) on which you want the command to take effect. An example is ls /etc, where the directory /etc is the argument to the ls command. This indicates that you want to see the content of that directory, instead of the default, which would be the content of the current directory, obtained by just typing ls followed by Enter. Some commands require arguments, sometimes arguments are optional.

You can find out whether a command takes options and arguments, and which ones are valid, by checking the online help for that command, see Section 2.3.

In Linux, like in UNIX, directories are separated using forward slashes, like the ones used in web addresses (URLs). We will discuss directory structure in-depth later.

The symbols . and .. have special meaning when directories are concerned. We will try to find out about those during the exercises, and more in the next chapter.

Try to avoid logging in with or using the system administrator's account, root. Besides doing your normal work, most tasks, including checking the system, collecting information etc., can be executed using a normal user account with no special permissions at all. If needed, for instance when creating a new user or installing new software, the preferred way of obtaining root access is by switching user IDs, see Section 3.2.1 for an example.

Almost all commands in this book can be executed without system administrator privileges. In most cases, when issuing a command or starting a program as a non-privileged user, the system will warn you or prompt you for the root password when root access is required. Once you've done, leave the application or session that gives you root privileges immediately.

Reading documentation should become your second nature. Especially in the beginning, it is important to read system documentation, manuals for basic commands, HOWTOs and so on. Since the amount of documentation is so enormous, it is impossible to include all related documentation. This book will try to guide you to the most appropriate documentation on every subject discussed, in order to stimulate the habit of reading the man pages.

2.2.3. Using Bash features

Several special key combinations allow you to do things easier and faster with the GNU shell, Bash, which is the default on almost any Linux system, see Section 3.2.3.2. Below is a list of the most commonly used features; you are strongly suggested to make a habit out of using them, so as to get the most out of your Linux experience from the very beginning.

The last two items in the above table may need some extra explanantions. For instance, if you want to change into the directory directory_with_a_very_long_name, you are not going to type that very long name, no. You just type on the command line cd dir, then you press Tab and the shell completes the name for you, if no other files are starting with the same three characters. Of course, if there are no other items starting with "d", then you might just as wel type cd d and then Tab. If more than one file starts with the same characters, the shell will signal this to you, upon which you can hit Tab twice with short interval, and the shell presents the choices you have:

your_prompt> cd st
starthere	 stuff		stuffit

In the above example, if you type "a" after the first two characters and hit Tab again, no other possibilities are left, and the shell completes the directory name, without you having to type the string "rthere":

your_prompt> cd starthere

Of course, you'll still have to hit Enter to accept this choice.

In the same example, if you type "u", and then hit Tab, the shell will add the "ff" for you, but then it protests again, because multiple choices are possible. If you type Tab Tab again, you'll see the choices; if you type one or more characters that make the choice unambiguous to the system, and Tab again, or Enter when you've reach the end of the file name that you want to choose, the shell completes the file name and changes you into that directory - if indeed it is a directory name.

This works for all file names that are arguments to commands.

The same goes for command name completion. Typing ls and then hitting the Tab key twice, lists all the commands in your PATH (see Section 3.2.1) that start with these two characters:

your_prompt> ls
ls           lsdev        lspci        lsraid       lsw
lsattr       lsmod        lspgpot      lss16toppm
lsb_release  lsof         lspnp        lsusb

2.3.1. Be warned

GNU/Linux is all about becoming more self-reliant. And as usual with this system, there are several ways to achieve the goal. A common way of getting help is finding someone who knows, and however patient and peace-loving the Linux-using community will be, almost everybody will expect you to have tried one or more of the methods in this section before asking them, and the ways in which this viewpoint is expressed may be rather harsh if you prove not to have followed this basic rule.

2.3.2. The man pages

A lot of beginning users fear the man (manual) pages, because they are an overwhelming source of documentation. They are, however, very structured, as you will see from the example below on: man man.

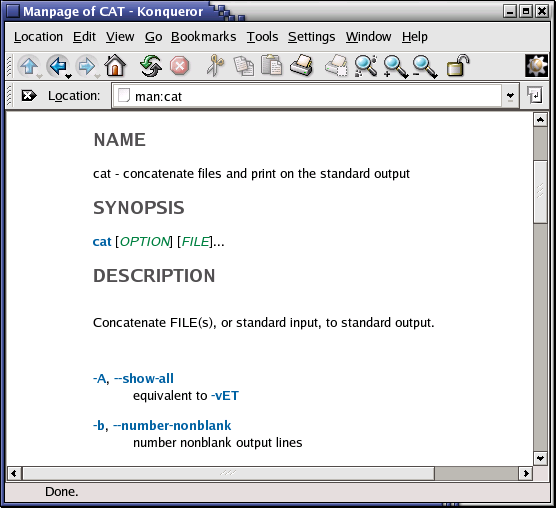

Reading man pages is usually done in a terminal window when in graphical mode, or just in text mode if you prefer it. Type the command like this at the prompt, followed by Enter:

yourname@yourcomp ~> man man

The documentation for man will be displayed on your screen after you press Enter:

man(1)                                                         man(1)



NAME
 man - format and display the on-line manual pages
 manpath - determine user's search path for man pages

SYNOPSIS
 man [-acdfFhkKtwW] [--path] [-m system] [-p string] [-C config_file]
 [-M pathlist] [-P pager] [-S section_list] [section] name ...


DESCRIPTION
 man formats and displays the on-line manual pages.  If you specify
 section, man only looks in that section of the manual.
 name is normally the name of the manual page, which is typically the
 name of a  command, function, or file.  However, if name contains a
 slash (/) then man interprets it as a file specification, so that you
 can do man ./foo.5 or even man /cd/foo/bar.1.gz.

 See  below  for  a  description  of where man looks for the manual
 page files.

OPTIONS
 -C  config_file
lines 1-27

Browse to the next page using the space bar. You can go back to the previous page using the b-key. When you reach the end, man will quit and you get the prompt back, or type q if you want to leave the man page before reaching the end.

Each man page usually contains a couple of standard sections, as we can see from the man man example:

• The first line contains the name of the command you are reading about, and the id of the section in which this man page is located. The man pages are ordered in chapters. Commands are likely to have multiple man pages, for example the man page from the user section, the man page from the system admin section, and the man page from the programmer section.

• The name of the command and a short description are given, which is used for building an index of the man pages. You can look for any given search string in this index using the apropos command.

• The synopsis of the command provides a technical notation of all the options and/or arguments this command can take. You can think of an option as a way of executing the command. The argument is what you execute it on. Some commands have no options or no arguments. Optional options and arguments are put in between "[" and "]" to indicate that they can be left out.

• A longer description of the command is given.

• Options with their descriptions are listed. Options can usually be combined. If not so, this section will tell you about it.

• Environment describes the shell variables that influence the behavior of this command (not all commands have this).

• Sometimes sections specific to this command are provided, such as the CAT PAGES section in the example.

• A reference to other man pages is given in the "SEE ALSO" section. In between parentheses is the number of the man page section in which to find this command. Experienced users often switch to the "SEE ALSO" part using the / command followed by the search string SEE and press Enter.

• Usually there is also information about known bugs (anomalies) and where to report new bugs you may find.

• There might also be author and copyright information.

Some commands have multiple man pages. For instance, the passwd command has a man page in section 1 and another in section 5. By default, the man page with the lowest number is shown. If you want to see another section than the default, specify it after the man command:

man 5 passwd

If you want to see all man pages about a command, one after the other, use the -a to man:

man -a passwd

This way, when you reach the end of the first man page and press SPACE again, the man page from the next section will be displayed.

2.3.3. More info

File: info.info,  Node: Top,  Next: Getting Started,  Up: (dir)

Info: An Introduction
*********************

   Info is a program, which you are using now, for reading
documentation of computer programs.  The GNU Project distributes most
of its on-line manuals in the Info format, so you need a program called
"Info reader" to read the manuals.  One of such programs you are using
now.

   If you are new to Info and want to learn how to use it, type the
command `h' now.  It brings you to a programmed instruction sequence.

   To learn advanced Info commands, type `n' twice.  This brings you to
`Info for Experts', skipping over the `Getting Started' chapter.

* Menu:

* Getting Started::             Getting started using an Info reader.
* Advanced Info::               Advanced commands within Info.
* Creating an Info File::       How to make your own Info file.
--zz-Info: (info.info.gz)Top, 24 lines --Top-------------------------------
Welcome to Info version 4.2. Type C-h for help, m for menu item.

[your_prompt] whatis ls
ls                   (1)  - list directory contents

another prompt> apropos browser
Galeon [galeon](1)  - gecko-based GNOME web browser
lynx           (1)  - a general purpose distributed information browser
	            for the World Wide Web
ncftp          (1)  - Browser program for the File Transfer Protocol
opera          (1)  - a graphical web browser
pilot          (1)  - simple file system browser in the style of the
		    Pine Composer
pinfo          (1)  - curses based lynx-style info browser
pinfo [pman]   (1)  - curses based lynx-style info browser
viewres        (1x)  - graphical class browser for Xt

userprompt@host: cat --help
Usage: cat [OPTION] [FILE]...
Concatenate FILE(s), or standard input, to standard output.

  -A, --show-all           equivalent to -vET
  -b, --number-nonblank    number nonblank output lines
  -e                       equivalent to -vE
  -E, --show-ends          display $ at end of each line
  -n, --number             number all output lines
  -s, --squeeze-blank      never more than one single blank line
  -t                       equivalent to -vT
  -T, --show-tabs          display TAB characters as ^I
  -u                       (ignored)
  -v, --show-nonprinting   use ^ and M- notation,
			   except for LFD and TAB
      --help     display this help and exit
      --version  output version information and exit

With no FILE, or when FILE is -, read standard input.

Report bugs to <bug-textutils@gnu.org>.

2.5.1. Connecting and disconnecting

• Determine whether you are working in text or in graphical mode.

  I am working in text/graphical mode. (cross out what's not applicable)

• Log in with the user name and password you made for yourself during the installation.

• Log out.

• Log in again, using a non-existent user name

  -> What happens?

2.5.2. Passwords

Log in again with your user name and password.

• Change your password into P6p3.aa! and hit the Enter key.

  -> What happens?

• Try again, this time enter a password that is ridiculously easy, like 123 or aaa.

  -> What happens?

• Try again, this time don't enter a password but just hit the Enter key.

  -> What happens?

• Try the command psswd instead of passwd

  -> What happens?

2.5.3. Directories

These are some exercises to help you get the feel.

• Enter the command cd blah

  -> What happens?

• Enter the command cd ..

  Mind the space between "cd" and ".."! Use the pwd command.

  -> What happens?

• List the directory contents with the ls command.

  -> What do you see?

  -> What do you think these are?

  -> Check using the pwd command.

• Enter the cd command.

  -> What happens?

• Repeat step 2 two times.

  -> What happens?

• Display the content of this directory.

• Try the command cd root

  -> What happens?

  -> To which directories do you have access?

• Repeat step 4.

  Do you know another possibility to get where you are now?

2.5.4. Files

• Change directory to / and then to etc. Type ls; if the output is longer than your screen, make the window longer, or try Shift+PageUp and Shift+PageDown.

  The file inittab contains the answer to the first question in this list. Try the file command on it.

  -> The file type of my inittab is .....

• Use the command cat inittab and read the file.

  -> What is the default mode of your computer?

• Return to your home directory using the cd command.

• Enter the command file .

  -> Does this help to find the meaning of "."?

• Can you look at "." using the cat command?

• Display help for the cat program, using the --help option. Use the option for numbering of output lines to count how many users are listed in the file /etc/passwd.

2.5.5. Getting help

• Read man intro

• Read man ls

• Read info passwd

• Enter the apropos pwd command.

• Try man or info on cd.

  -> How would you find out more about cd?

• Read ls --help and try it out.

3.1.1. Files

jaime:~/Documents> ls -l
total 80
-rw-rw-r--   1 jaime   jaime   31744 Feb 21 17:56 intro Linux.doc
-rw-rw-r--   1 jaime   jaime   41472 Feb 21 17:56 Linux.doc
drwxrwxr-x   2 jaime   jaime    4096 Feb 25 11:50 course

3.1.2. About partitioning

freddy:~> df -h
Filesystem          Size  Used Avail Use% Mounted on
/dev/hda8           496M  183M  288M  39% /
/dev/hda1           124M  8.4M  109M   8% /boot
/dev/hda5            19G   15G  2.7G  85% /opt
/dev/hda6           7.0G  5.4G  1.2G  81% /usr
/dev/hda7           3.7G  2.7G  867M  77% /var
fs1:/home           8.9G  3.7G  4.7G  44% /.automount/fs1/root/home

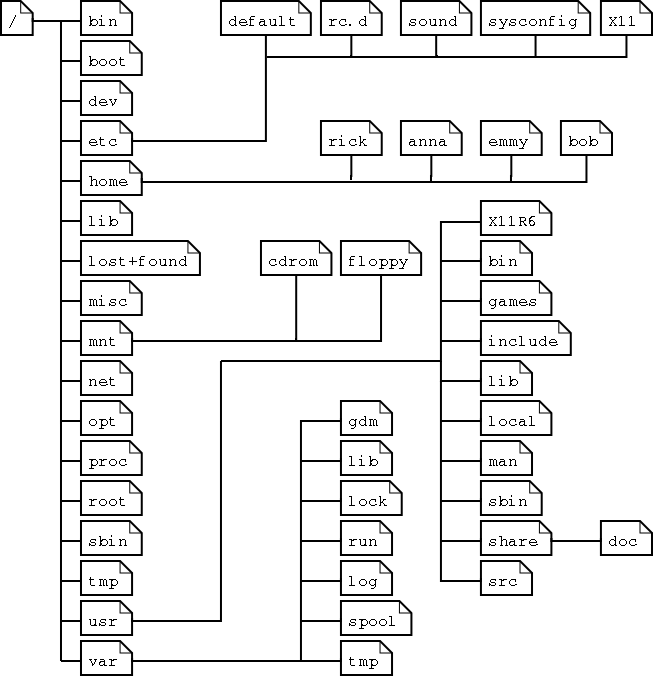

3.1.3. More file system layout

emmy:~> cd /
emmy:/> ls
bin/   dev/  home/    lib/         misc/  opt/     root/  tmp/  var/
boot/  etc/  initrd/  lost+found/  mnt/   proc/    sbin/  usr/

sandra:/lib> df -h .
Filesystem            Size  Used Avail Use% Mounted on
/dev/hda7             980M  163M  767M  18% /

3.2.1. The path

When you want the system to execute a command, you almost never have to give the full path to that command. For example, we know that the ls command is in the /bin directory (check with which -a ls), yet we don't have to enter the command /bin/ls for the computer to list the content of the current directory.

The PATH environment variable takes care of this. This variable lists those directories in the system where executable files can be found, and thus saves the user a lot of typing and memorizing locations of commands. So the path naturally contains a lot of directories containing bin somewhere in their names, as the user below demonstrates. The echo command is used to display the content ("$") of the variable PATH:

rogier:> echo $PATH
/opt/local/bin:/usr/X11R6/bin:/usr/bin:/usr/sbin/:/bin

In this example, the directories /opt/local/bin, /usr/X11R6/bin, /usr/bin, /usr/sbin and /bin are subsequently searched for the required program. As soon as a match is found, the search is stopped, even if not every directory in the path has been searched. This can lead to strange situations. In the first example below, the user knows there is a program called sendsms to send an SMS message, and another user on the same system can use it, but she can't. The difference is in the configuration of the PATH variable:

[jenny@blob jenny]$ sendsms
bash: sendsms: command not found
[jenny@blob jenny]$ echo $PATH
/bin:/usr/bin:/usr/bin/X11:/usr/X11R6/bin:/home/jenny/bin
[jenny@blob jenny]$ su - tony
Password:
tony:~>which sendsms
sendsms is /usr/local/bin/sendsms

tony:~>echo $PATH
/home/tony/bin.Linux:/home/tony/bin:/usr/local/bin:/usr/local/sbin:\
/usr/X11R6/bin:/usr/bin:/usr/sbin:/bin:/sbin

Note the use of the su (switch user) facility, which allows you to run a shell in the environment of another user, on the condition that you know the user's password.

A backslash indicates the continuation of a line on the next, without an Enter separating one line from the other.

In the next example, a user wants to call on the wc (word count) command to check the number of lines in a file, but nothing happens and he has to break off his action using the Ctrl+C combination:

jumper:~> wc -l test

(Ctrl-C)
jumper:~> which wc
wc is hashed (/home/jumper/bin/wc)

jumper:~> echo $PATH
/home/jumper/bin:/usr/local/bin:/usr/local/sbin:/usr/X11R6/bin:
/usr/bin:/usr/sbin:/bin:/sbin

The use of the which command shows us that this user has a bin-directory in his home directory, containing a program that is also called wc. Since the program in his home directory is found first when searching the paths upon a call for wc, this "home-made" program is executed, with input it probably doesn't understand, so we have to stop it. To resolve this problem there are several ways (there are always several ways to solve a problem in UNIX/Linux): one answer could be to rename the user's wc program, or the user can give the full path to the exact command he wants, which can be found by using the -a to the which command:

jumper:~> /usr/bin/wc -l test
       10 test

If the user uses programs in the other directories more frequently, he can change his path to look in his own directories last:

jumper:~> export PATH=/usr/local/bin:/usr/local/sbin:/usr/X11R6/bin:\
/usr/bin:/usr/sbin:/bin:/sbin:/home/jumper/bin

	Changes are not permanent!
	Note that when using the export command in a shell, the changes are temporary and only valid for this session (until you log out). Opening new sessions, even while the current one is still running, will not result in a new path in the new session. We will see in Section 7.2 how we can make these kinds of changes to the environment permanent, adding these lines to the shell configuration files.

3.2.2. Absolute and relative paths

A path, which is the way you need to follow in the tree structure to reach a given file, can be described as starting from the trunk of the tree (the / or root directory). In that case, the path starts with a slash and is called an absolute path, since there can be no mistake: only one file on the system can comply.

In the other case, the path doesn't start with a slash and confusion is possible between ~/bin/wc (in the user's home directory) and bin/wc in /usr, from the previous example. Paths that don't start with a slash are always relative.

In relative paths we also use the . and .. indications for the current and the parent directory. A couple of practical examples:

• When you want to compile source code, the installation documentation often instructs you to run the command ./configure, which runs the configure program located in the current directory (that came with the new code), as opposed to running another configure program elsewhere on the system.

• In HTML files, relative paths are often used to make a set of pages easily movable to another place:

  <img alt="Garden with trees" src="../images/garden.jpg">

• Notice the difference one more time:

  theo:~> ls /mp3 ls: /mp3: No such file or directory theo:~>ls mp3/ oriental/ pop/ sixties/

3.2.3. The most important files and directories

---

3.2.3.2. The shell

3.2.3.2.1. What is a shell?

When I was looking for an appropriate explanation on the concept of a shell, it gave me more trouble than I expected. All kinds of definitions are available, ranging from the simple comparison that "the shell is the steering wheel of the car", to the vague definition in the Bash manual which says that "bash is an sh-compatible command language interpreter," or an even more obscure expression, "a shell manages the interaction between the system and its users". A shell is much more than that.

A shell can best be compared with a way of talking to the computer, a language. Most users do know that other language, the click-and-point language of the desktop. But in that language the user is treated as a baby, asked to pick from what is presented to him.

The shell, on the other hand, is an advanced way of communicating with the system, because it allows for conversation and taking initiative. Both partners in the communication are equal, so new ideas can be tested. The shell allows the user to handle a system in a flexible way, and is also a means of stress reduction. Who does not appreciate being treated like an adult?

---

3.2.3.2.2. Shell types

Just like people know different languages and dialects, the computer knows different shell types:

• sh or Bourne Shell: the original shell still used on UNIX systems and in UNIX related environments. This is the basic shell, a small program with few features. When in POSIX-compatible mode, bash will emulate this shell.

• bash or Bourne Again shell: the standard GNU shell, intuitive and flexible. Probably most advisable for beginning users while being at the same time a powerful tool for the advanced and professional user. On Linux, bash is the standard shell for common users. This shell is a so-called superset of the Bourne shell, a set of add-ons and plug-ins. This means that the Bourne Again shell is compatible with the Bourne shell: commands that work in sh, also work in bash. However, the reverse is not always the case. All examples and exercises in this book use bash.

• csh or C shell: the syntax of this shell resembles that of the C programming language. Sometimes asked for by programmers.

• tcsh or Turbo C shell: a superset of the common C shell, enhancing user-friendliness and speed.

• ksh or the Korn shell: sometimes appreciated by people with a UNIX background. A superset of the Bourne shell; with standard configuration a nightmare for beginning users.

The file /etc/shells gives an overview of known shells on a Linux system:

mia:~> cat /etc/shells /bin/bash /bin/sh /bin/tcsh /bin/csh

	Fake Bourne shell
	Note that /bin/sh is usually a link to Bash, which will execute in Bourne shell compatible mode when called on this way.

Your default shell is set in the /etc/passwd file, like this line for user mia:

mia:L2NOfqdlPrHwE:504:504:Mia Maya:/home/mia:/bin/bash

To switch from one shell to another, just enter the name of the new shell in the active terminal. The system finds the directory where the name occurs using the PATH settings, and since a shell is an executable file (program), the current shell activates it and it gets executed. A new prompt is usually shown, because each shell has its typical appearance:

mia:~> tcsh [mia@post21 ~]$

---

3.2.3.2.3. Which shell am I using?

If you don't know which shell you are using, either check the line for your account in /etc/passwd or type the command

echo $SHELL

orlando:~> echo $HOME
/nethome/orlando

pierre@lamaison:/> quota -v
Diskquotas for user pierre (uid 501): none

rom:/var/music/albums/arno/2001> cd ~/images

rom:~/images> pwd
/home/rom/images

3.2.4. The most important configuration files

As we mentioned before, most configuration files are stored in the /etc directory. Content can be viewed using the cat command, which sends text files to the standard output (usually your monitor). The syntax is straight forward:

cat file1 file2 ... fileN

In this section we try to give an overview of the most common configuration files. This is certainly not a complete list. Adding extra packages may also add extra configuration files in /etc. When reading the configuration files, you will find that they are usually quite well commented and self-explanatory. Some files also have man pages which contain extra documentation, such as man aliases.

Throughout this guide we will learn more about these files and study some of them in detail.

3.2.5. The most common devices

Devices, generally every peripheral attachment of a PC that is not the CPU itself, is presented to the system as an entry in the /dev directory. One of the advantages of this UNIX-way of handling devices is that neither the user nor the system has to worry much about the specification of devices.

Users that are new to Linux or UNIX in general are often overwhelmed by the amount of new names and concepts they have to learn. That is why a list of common devices is included in this introduction.

3.2.6. The most common variable files

In the /var directory we find a set of directories for storing specific non-constant data (as opposed to the ls program or the system configuration files, which change relatively infrequently or never at all). All files that change frequently, such as log files, mailboxes, lock files, spoolers etc. are kept in a subdirectory of /var.

As a security measure these files are usually kept in separate parts from the main system files, so we can keep a close eye on them and set stricter permissions where necessary. A lot of these files also need more permissions than usual, like /var/tmp, which needs to be writable for everyone. A lot of user activity might be expected here, which might even be generated by anonymous Internet users connected to your system. This is one reason why the /var directory, including all its subdirectories, is usually on a separate partition. This way, there is for instance no risk that a mail bomb, for instance, fills up the rest of the file system, containing more important data such as your programs and configuration files.

/var/tmp and /tmp

Files in /tmp can be deleted without notice, by regular system tasks or because of a system reboot. On some (customized) systems, also /var/tmp might behave unpredictably. Nevertheless, since this is not the case by default, we advise to use the /var/tmp directory for saving temporary files. When in doubt, check with your system administrator. If you manage your own system, you can be reasonably sure that this is a safe place if you did not consciously change settings on /var/tmp (as root, a normal user can not do this). Whatever you do, try to stick to the privileges granted to a normal user - don't go saving files directly under the root (/) of the file system, don't put them in /usr or some subdirectory or in another reserved place. This pretty much limits your access to safe file systems.

One of the main security systems on a UNIX system, which is naturally implemented on every Linux machine as well, is the log-keeping facility, which logs all user actions, processes, system events etc. The configuration file of the so-called syslogdaemon determines which and how long logged information will be kept. The default location of all logs is /var/log, containing different files for access log, server logs, system messages etc.

In /var we typically find server data, which is kept here to separate it from critical data such as the server program itself and its configuration files. A typical example on Linux systems is /var/www, which contains the actual HTML pages, scripts and images that a web server offers. The FTP-tree of an FTP server (data that can be downloaded by a remote client) is also best kept in one of /var's subdirectories. Because this data is publicly accessible and often changeable by anonymous users, it is safer to keep it here, away from partitions or directories with sensitive data.

On most workstation installations, /var/spool will at least contain an at and a cron directory, containing scheduled tasks. In office environments this directory usually contains lpd as well, which holds the print queue(s) and further printer configuration files, as well as the printer log files.

On server systems we will generally find /var/spool/mail, containing incoming mails for local users, sorted in one file per user, the user's "inbox". A related directory is mqueue, the spooler area for unsent mail messages. These parts of the system can be very busy on mail servers with a lot of users. News servers also use the /var/spool area because of the enormous amounts of messages they have to process.

The /var/lib/rpm directory is specific to RPM-based (RedHat Package Manager) distributions; it is where RPM package information is stored.

3.3.1. Viewing file properties

krissie:~/mp3> ls
Albums/  Radio/  Singles/  gene/  index.html

krissie:~/mp3> ls -a
./   .thumbs  Radio     gene/
../  Albums/  Singles/  index.html

krissie:~/mp3> ls -l Radio/
total 8
drwxr-xr-x    2 krissie krissie  4096 Oct 30  1999 Carolina/
drwxr-xr-x    2 krissie krissie  4096 Sep 24  1999 Slashdot/

krissie:~/mp3> ls -ld Radio/
drwxr-xr-x    4 krissie krissie  4096 Oct 30  1999 Radio/

krissie:~/mp3> ls -ltr
total 20
drwxr-xr-x    4 krissie krissie  4096 Oct 30  1999 Radio/
-rw-r--r--    1 krissie krissie   453 Jan  7  2001 index.html
drwxrwxr-x   30 krissie krissie  4096 Oct 20 17:32 Singles/
drwxr-xr-x    2 krissie krissie  4096 Dec  4 23:22 gene/
drwxrwxr-x   13 krissie krissie  4096 Dec 21 11:40 Albums/

---

3.3.1.2. More tools

To find out more about the kind of data we are dealing with, we use the file command. By applying certain tests that check properties of a file in the file system, magic numbers and language tests, file tries to make an educated guess about the format of a file. Some examples:

mike:~> file Documents/ Documents/: directory mike:~> file high-tech-stats.pdf high-tech-stats.pdf: PDF document, version 1.2 mike:~> file Nari-288.rm Nari-288.rm: RealMedia file mike:~> file bijlage10.sdw bijlage10.sdw: Microsoft Office Document mike:~> file logo.xcf logo.xcf: GIMP XCF image data, version 0, 150 x 38, RGB Color mike:~> file cv.txt cv.txt: ISO-8859 text mike:~> file image.png image.png: PNG image data, 616 x 862, 8-bit grayscale, non-interlaced mike:~> file figure figure: ASCII text mike:~> file me+tux.jpg me+tux.jpg: JPEG image data, JFIF standard 1.01, resolution (DPI), "28 Jun 1999", 144 x 144 mike:~> file 42.zip.gz 42.zip.gz: gzip compressed data, deflated, original filename, `42.zip', last modified: Thu Nov 1 23:45:39 2001, os: Unix mike:~> file vi.gif vi.gif: GIF image data, version 89a, 88 x 31 mike:~> file slide1 slide1: HTML document text mike:~> file template.xls template.xls: Microsoft Office Document mike:~> file abook.ps abook.ps: PostScript document text conforming at level 2.0 mike:~> file /dev/log /dev/log: socket mike:~> file /dev/hda /dev/hda: block special (3/0)

The file command has a series of options, among others the -z option to look into compressed files. See info file for a detailed description. Keep in mind that the results of file are not absolute, it is only a guess. In other words, file can be tricked.

	Why all the fuss about file types and formats?
	Shortly, we will discuss a couple of command-line tools for looking at plain text files. These tools will not work when used on the wrong type of files. In the worst case, they will crash your terminal and/or make a lot of beeping noises. If this happens to you, just close the terminal session and start a new one. But try to avoid it, because it is usually very disturbing for other people.

3.3.2. Creating and deleting files and directories

[newuser@blob user]$ ls -al
total 32
drwx------   3 user 	user        4096 Jan 16 13:32 .
drwxr-xr-x   6 root     root        4096 Jan 16 13:32 ..
-rw-r--r--   1 user 	user      24 Jan 16 13:32 .bash_logout
-rw-r--r--   1 user 	user     191 Jan 16 13:32 .bash_profile
-rw-r--r--   1 user 	user     124 Jan 16 13:32 .bashrc
drwxr-xr-x   3 user 	user    4096 Jan 16 13:32 .kde
-rw-r--r--   1 user 	user    3511 Jan 16 13:32 .screenrc
-rw-------   1 user 	user      61 Jan 16 13:32 .xauthDqztLr

olduser:~> ls
app-defaults/ crossover/   Fvwm@     mp3/      OpenOffice.org638/
articles/     Desktop/     GNUstep/  Nautilus/ staroffice6.0/
bin/          Desktop1/    images/   nqc/      training/
brol/         desktoptest/ Machines@ ns_imap/  webstart/
C/            Documents/   mail/     nsmail/   xml/
closed/       Emacs@       Mail/     office52/ Xrootenv.0

---

3.3.2.2. The tools

3.3.2.2.1. Creating directories

A way of keeping things in place is to give certain files specific default locations by creating directories and subdirectories (or folders and sub-folders if you wish). This is done with the mkdir command:

richard:~> mkdir archive richard:~> ls -ld archive drwxrwxrwx 2 richard richard 4096 Jan 13 14:09 archive/

Creating directories and subdirectories in one step is done using the -p option:

richard:~> cd archive richard:~/archive> mkdir 1999 2000 2001 richard:~/archive> ls 1999/ 2000/ 2001/ richard:~/archive> mkdir 2001/reports/Restaurants-Michelin/ mkdir: cannot create directory `2001/reports/Restaurants-Michelin/': No such file or directory richard:~/archive> mkdir -p 2001/reports/Restaurants-Michelin/ richard:~/archive> ls 2001/reports/ Restaurants-Michelin/

If the new file needs other permissions than the default file creation permissions, the new access rights can be set in one move, still using the mkdir command, see the Info pages for more. We are going to discuss access modes in the next section on File Security.

The name of a directory has to comply with the same rules as those applied on regular file names. One of the most important restrictions is that you can't have two files with the same name in one directory (but keep in mind that Linux is, like UNIX, a case sensitive operating system). There are virtually no limits on the length of a file name, but it is usually kept shorter than 80 characters, so it can fit on one line of a terminal. You can use any character you want in a file name, although it is advised to exclude characters that have a special meaning to the shell. When in doubt, check with Appendix C.

---

3.3.2.2.2. Moving files

Now that we have properly structured our home directory, it is time to clean up unclassified files using the mv command:

richard:~/archive> mv ../report[1-4].doc reports/Restaurants-Michelin/

This command is also applicable when renaming files:

richard:~> ls To_Do -rw-rw-r-- 1 richard richard 2534 Jan 15 12:39 To_Do richard:~> mv To_Do done richard:~> ls -l done -rw-rw-r-- 1 richard richard 2534 Jan 15 12:39 done

It is clear that only the name of the file changes. All other properties remain the same.

Detailed information about the syntax and features of the mv command can be found in the man or Info pages. The use of this documentation should always be your first reflex when confronted with a problem. The answer to your problem is likely to be in the system documentation. Even experienced users read man pages every day, so beginning users should read them all the time. After a while, you will get to know the most common options to the common commands, but you will still need the documentation as a primary source of information. Note that the information contained in the HOWTOs, FAQs, man pages and such is slowly being merged into the Info pages, which are today the most up-to-date source of online (as in readily available on the system) documentation.

---

3.3.2.2.3. Copying files

Copying files and directories is done with the cp command. A useful option is recursive copy (copy all underlying files and subdirectories), using the -R option to cp. The general syntax is

cp [-R] fromfile tofile

As an example the case of user newguy, who wants the same Gnome desktop settings user oldguy has. One way to solve the problem is to copy the settings of oldguy to the home directory of newguy:

victor:~> cp -R ../oldguy/.gnome/ .

This gives some errors involving file permissions, but all the errors have to do with private files that newguy doesn't need anyway. We will discuss in the next part how to change these permissions in case they really are a problem.

---

3.3.2.2.4. Removing files

Use the rm command to remove single files, rmdir to remove empty directories. (Use ls -a to check whether a directory is empty or not). The rm command also has options for removing non-empty directories with all their subdirectories, read the Info pages for these rather dangerous options.

	How empty can a directory be?
	It is normal that the directories . (dot) and .. (dot-dot) can't be removed, since they are also necessary in an empty directory to determine the directories ranking in the file system hierarchy.

On Linux, just like on UNIX, there is no garbage can - at least not for the shell, although there are plenty of solutions for graphical use. So once removed, a file is really gone, and there is generally no way to get it back unless you have backups, or you are really fast and have a real good system administrator. To protect the beginning user from this malice, the interactive behavior of the rm, cp and mv commands can be activated using the -i option. In that case the system won't immediately act upon request. Instead it will ask for confirmation, so it takes an additional click on the Enter key to inflict the damage:

mary:~> rm -ri archive/ rm: descend into directory `archive'? y rm: descend into directory `archive/reports'? y rm: remove directory `archive/reports'? y rm: descend into directory `archive/backup'? y rm: remove `archive/backup/sysbup200112.tar'? y rm: remove directory `archive/backup'? y rm: remove directory `archive'? y

We will discuss how to make this option the default in Chapter 7, which discusses customizing your shell environment.

3.3.3. Finding files

tina:~> which acroread
/usr/bin/which: no acroread in (/bin:/usr/bin:/usr/bin/X11)

tina:~> export PATH=$PATH:/opt/acroread/bin

tina:~> echo $PATH
/bin:/usr/bin:/usr/bin/X11:/opt/acroread/bin

gerrit:~> which -a ls
ls is aliased to `ls -F --color=auto'
ls is /bin/ls

gerrit:~> which -a which
which is aliased to `type'
which is /usr/bin/which

gerrit:~> which type
type is a shell builtin

---

3.3.3.3. Find and locate

These are the real tools, used when searching other paths beside those listed in the search path. The find tool, known from UNIX, is very powerful, which may be the cause of a somewhat more difficult syntax. GNU find, however, deals with the syntax problems. This command not only allows you to search file names, it can also accept file size, date of last change and other file properties as criteria for a search. The most common use is for finding file names:

find <path> -name <searchstring>

This can be interpreted as "Look in all files and subdirectories contained in a given path, and print the names of the files containing the search string in their name" (not in their content).

Another application of find is for searching files of a certain size, as in the example below, where user peter wants to find all files in the current directory or one of its subdirectories, that are bigger than 5 MB:

peter:~> find . -size +5000k psychotic_chaos.mp3

If you dig in the man pages, you will see that find can also perform operations on the found files. A common example is removing files. It is best to first test without the -exec option that the correct files are selected, after that the command can be rerun to delete the selected files. Below, we search for files ending in .tmp:

peter:~> find . -name "*.tmp" -exec rm {} \; peter:~>

Optimize!

This command will call on rm as many times as a file answering the requirements is found. In the worst case, this might be thousands or millions of times. This is quite a load on your system. A more realistic way of working would be the use of a pipe (|) and the xargs tool with rm as an argument. This way, the rm command is only called when the command line is full, instead of for every file. See Chapter 5 for more on using I/O redirection to ease everyday tasks.

Later on (in 1999 according to the man pages, after 20 years of find), locate was developed. This program is easier to use, but more restricted than find, since its output is based on a file index database that is updated only once every day. On the other hand, a search in the locate database is less time- and CPU-consuming than a search with find.

Most Linux distributions use slocate these days, security enhanced locate, the modern version of locate that prevents users from getting output they have no right to read. The files in root's home directory are such an example, these are not normally accessible to the public. A user who wants to find someone who knows about the C-shell may issue the command locate .cshrc, to display all users who have a customized configuration file for the C shell. Supposing the users root and jenny are running C shell, then only the file /home/jenny/.cshrc will be displayed, and not the one in root's home directory. On most systems, locate is a symbolic link to the slocate program:

billy:~> ls -l /usr/bin/locate lrwxrwxrwx 1 root slocate 7 Oct 28 14:18 /usr/bin/locate -> slocate*

User tina could have used locate to find the application she wanted:

tina:~> locate acroread /usr/share/icons/hicolor/16x16/apps/acroread.png /usr/share/icons/hicolor/32x32/apps/acroread.png /usr/share/icons/locolor/16x16/apps/acroread.png /usr/share/icons/locolor/32x32/apps/acroread.png /usr/local/bin/acroread /usr/local/Acrobat4/Reader/intellinux/bin/acroread /usr/local/Acrobat4/bin/acroread

Directories that don't contain the name bin can't contain the program - they don't contain executable files. There are three possibilities left. The file in /usr/local/bin is the one tina would have wanted: it is a link to the shell script that starts the actual program:

tina:~> file /usr/local/bin/acroread /usr/local/bin/acroread: symbolic link to ../Acrobat4/bin/acroread tina:~> file /usr/local/Acrobat4/bin/acroread /usr/local/Acrobat4/bin/acroread: Bourne shell script text executable tina:~> file /usr/local/Acrobat4/Reader/intellinux/bin/acroread /usr/local/Acrobat4/Reader/intellinux/bin/acroread: ELF 32-bit LSB executable, Intel 80386, version 1, dynamically linked (uses shared libs), not stripped

In order to keep the path as short as possible, so the system doesn't have to search too long every time a user wants to execute a command, we add /usr/local/bin to the path and not the other directories, which only contain the binary files of one specific program, while /usr/local/bin contains other useful programs as well.

Again, a description of the full features of find and locate can be found in the Info pages.

---

3.3.3.4. The grep command

3.3.3.4.1. General line filtering

A simple but powerful program, grep is used for filtering input lines and returning certain patterns to the output. There are literally thousands of applications for the grep program. In the example below, jerry uses grep to see how he did the thing with find:

jerry:~> grep -a find .bash_history find . -name userinfo man find find ../ -name common.cfg

Search history

Also useful in these cases is the search function in bash, activated by pressing Ctrl+R at once, such as in the example where we want to check how we did that last find again: thomas ~> ^R (reverse-i-search)`find': find `/home/thomas` -name *.xml Type your search string at the search prompt. The more characters you type, the more restricted the search gets. This reads the command history for this shell session (which is written to .bash_history in your home directory when you quit that session). The most recent occurrence of your search string is shown. If you want to see previous commands containing the same string, type Ctrl+R again. See the Info pages on bash for more.

All UNIXes with just a little bit of decency have an online dictionary. So does Linux. The dictionary is a list of known words in a file named words, located in /usr/share/dict. To quickly check the correct spelling of a word, no graphical application is needed:

william:~> grep pinguin /usr/share/dict/words william:~> grep penguin /usr/share/dict/words penguin penguins

Who is the owner of that home directory next to mine? Hey, there's his telephone number!

lisa:~> grep gdbruyne /etc/passwd gdbruyne:x:981:981:Guy Debruyne, tel 203234:/home/gdbruyne:/bin/bash

And what was the E-mail address of Arno again?

serge:~/mail> grep -i arno * sent-mail: To: <Arno.Hintjens@celeb.com> sent-mail: On Mon, 24 Dec 2001, Arno.Hintjens@celeb.com wrote:

find and locate are often used in combination with grep to define some serious queries. For more information, see Chapter 5 on I/O redirection.

---

3.3.3.4.2. Special characters

Characters that have a special meaning to the shell have to be escaped. The escape character in Bash is backslash, as in most shells; this takes away the special meaning of the following character. The shell knows about quite some special characters, among the most common /, ., ? and *. A full list can be found in the Info pages and documentation for your shell. For instance, say that you want to display the lines containing "searchstring*" (where * matches the asterisk character) instead of any lines containing the string "searchstring"* (where * matches any amount of any character), you issue the command

grep "searchstring\*" file(s)

Finding the string "e.g." in a file will report all lines containing any character in the second and forth position of the search string. If you escape the dots, you will find the occurrences of the string representing the abbreviation for "example given":

grep "e\.g\." file

More in the grep Info pages.

3.3.4. More ways to view file content

3.3.4.1. General

Apart from cat, which really doesn't do much more than sending files to the standard output, there are other tools to view file content.

The easiest way of course would be to use graphical tools instead of command line tools. In the introduction we already saw a glimpse of an office application, OpenOffice. Other examples are the GIMP (start up with gimp from the command line), the GNU Image Manipulation Program; xpdf to view Portable Document Format files (PDF); GhostView (gv) for viewing PostScript files; the Mozilla Project, links (a text mode browser), Konqueror, Opera and many others for web content; XMMS, CDplay and others for multi-media file content; AbiWord, Gnumeric, KOffice etc. for all kinds of office applications and so on. There are thousands of Linux applications; to list them all would take days.

Instead we keep concentrating on shell- or text-mode applications, which form the basics for all other applications. These commands work best in a text environment on files containing text. When in doubt, check first using the file command.

So let's see what text tools we have that are useful to look inside files.

Font problems

Plain text tools such as the ones we will now be discussing, often have problems with "plain" text files because of the font encoding used in those files. Special characters, such as accented alphabetical characters, Chinese characters and other characters from languages using different character sets than the default en_US encoding and so on, are then displayed the wrong way or replaced by unreadable rubbish. These problems are discussed in Section 7.5.

tony:~> tail -10 .bash_history
locate configure | grep bin
man bash
cd
xawtv &
grep usable /usr/share/dict/words
grep advisable /usr/share/dict/words
info quota
man quota
echo $PATH
frm

3.3.5. Linking files

[dupont@boulot .gnome-desktop]$ cat La\ Maison\ Dupont
[Desktop Entry]
Encoding=Legacy-Mixed
Name=La Maison Dupont
Type=X-nautilus-home
X-Nautilus-Icon=temp-home
URL=file:///home/dupont

[lena@venus Desktop]$ cat camera
[Desktop Entry]
Dev=/dev/sda1
FSType=auto
Icon=memory
MountPoint=/mnt/camera
Type=FSDevice
X-KDE-Dynamic-Device=true

freddy:~/music> ln -s /opt/mp3/Queen/ Queen

freddy:~/music> ls -l
lrwxrwxrwx  1 freddy  freddy  17 Jan 22 11:07 Queen -> /opt/mp3/Queen

3.4.1. Access rights: Linux's first line of defense

The Linux security model is based on the one used on UNIX systems, and is as rigid, and in some cases even more, as the UNIX security model, which is already quite robust. On a Linux system, every file is owned by a user and a group user. There is also a third category of users, those that are not the user owner and don't belong to the group owning the file. For each category of users, read, write and execute permissions can be granted or denied.

We already used the long option to list files using the ls -l command, though for other reasons. This command also displays file permissions for these three user categories; they are indicated by the nine characters that follow the first character, which is the file type indicator at the beginning of the file properties line. As seen in the examples below, the first three characters in this series of nine display access rights for the actual user that owns the file. The next three are for the group owner of the file, the last three for other users. The permissions are always in the same order: read, write, execute for the user, the group and the others. Some examples:

marise:~> ls -l To_Do
-rw-rw-r--    1 marise  users      5 Jan 15 12:39 To_Do
marise:~> ls -l /bin/ls
-rwxr-xr-x    1 root    root   45948 Aug  9 15:01 /bin/ls*

The first file is a regular file (first dash). Users with user name marise or users belonging to the group users can read and write (change/move/delete) the file, but they can't execute it (second and third dash). All other users are only allowed to read this file, but they can't write or execute it (fourth and fifth dash).

The second example is an executable file, the difference: everybody can run this program, but you need to be root to change it.

The Info pages explain how the ls command handles display of access rights in detail, see the section What information is listed.

For easy use with commands, both access rights or modes and user groups have a code. See the tables below.

This straight forward scheme is applied very strictly, which allows a high level of security even without network security. Among other functions, the security scheme takes care of user access to programs, it can serve files on a need-to-know basis and protect sensitive data such as home directories and system configuration files.

You should know what your user name is. If you don't, it can be displayed using the id command, which also displays the default group you belong to and eventually other groups of which you are a member:

tilly:~> id
uid=504(tilly) gid=504(tilly) groups=504(tilly),100(users),2051(org)

Your user name is also stored in the environment variable USER:

tilly:~> echo $USER
tilly

3.4.2. The tools

asim:~> ./hello
bash: ./hello: bad interpreter: Permission denied

asim:~> cat hello
#!/bin/bash
echo "Hello, World"

asim:~> ls -l hello
-rw-rw-r--    1 asim    asim    32 Jan 15 16:29 hello

asim:~> chmod u+x hello

asim:~> ./hello
Hello, World

asim:~> ls -l hello
-rwxrw-r--   1 asim    asim    32 Jan 15 16:29 hello*

asim:~> chmod u+rwx,go-rwx hello

asim:~> ls -l hello
-rwx------    1 asim    asim    32 Jan 15 16:29 hello*

---

3.4.2.2. Logging on to another group

When you type id on the command line, you get a list of all the groups that you can possibly belong to, preceded by your user name and ID and the group name and ID that you are currently connected with. However, on many Linux systems you can only be actively logged in to one group at the time. By default, this active or primary group is the one that you get assigned from the /etc/passwd file. The fourth field of this file holds users' primary group ID, which is looked up in the /etc/group file. An example:

asim:~> id uid=501(asim) gid=501(asim) groups=100(users),501(asim),3400(web) asim:~> grep asim /etc/passwd asim:x:501:501:Asim El Baraka:/home/asim:/bin/bash asim:~> grep 501 /etc/group asim:x:501:

The fourth field in the line from /etc/passwd contains the value "501", which represents the group asim in the above example. From /etc/group we can get the name matching this group ID. When initially connecting to the system, this is the group that asim will belong to.

	User private group scheme
	In order to allow more flexibility, most Linux systems follow the so-called user private group scheme, that assigns each user primarily to his or her own group. This group is a group that only contains this particular user, hence the name "private group". Usually this group has the same name as the user login name, which can be a bit confusing.

Apart from his own private group, user asim can also be in the groups users and web. Because these are secondary groups to this user, he will need to use the newgrp to log into any of these groups. In the example, asim needs to create files that are owned by the group web.

asim:/var/www/html> newgrp web asim:/var/www/html> id uid=501(asim) gid=3400(web) groups=100(users),501(asim),3400(web)

When asim creates new files now, they will be in group ownership of the group web instead of being owned by the group asim:

asim:/var/www/html> touch test asim:/var/www/html> ls -l test -rw-rw-r-- 1 asim web 0 Jun 10 15:38 test

Loggin in to a new group prevents you from having to use chown (see Section 3.4.2.4) or calling your system administrator to change ownerships for you.

See the manpage for newgrp for more information.

bert:~> umask
0002

bert:~> mkdir newdir

bert:~> ls -ld newdir
drwxrwxr-x    2 bert    bert		4096 Feb 28 13:45 newdir/

bert:~> touch newfile

bert:~> ls -l newfile
-rw-rw-r--    1 bert    bert		   0 Feb 28 13:52 newfile

[root@estoban root]# umask
022

---

3.4.2.4. Changing user and group ownership

When a file is owned by the wrong user or group, the error can be repaired with the chown (change owner) and chgrp (change group) commands. Changing file ownership is a frequent system administrative task in environments where files need to be shared in a group. Both commands are very flexible, as you can find out by using the --help option.

The chown command can be applied to change both user and group ownership of a file, while chgrp only changes group ownership. Of course the system will check if the user issuing one of these commands has sufficient permissions on the file(s) she wants to change.

In order to only change the user ownership of a file, use this syntax:

chown newuser file

If you use a colon after the user name (see the Info pages), group ownership will be changed as well, to the primary group of the user issuing the command. On a Linux system, each user has his own group, so this form can be used to make files private:

jacky:~> id uid=1304(jacky) gid=(1304) groups=1304(jacky),2034(pproject) jacky:~> ls -l my_report -rw-rw-r-- 1 jacky project 29387 Jan 15 09:34 my_report jacky:~> chown jacky: my_report jacky:~> chmod o-r my_report jacky:~> ls -l my_report -rw-rw---- 1 jacky jacky 29387 Jan 15 09:34 my_report

If jacky would like to share this file, without having to give everybody permission to write it, he can use the chgrp command:

jacky:~> ls -l report-20020115.xls -rw-rw---- 1 jacky jacky 45635 Jan 15 09:35 report-20020115.xls jacky:~> chgrp project report-20020115.xls jacky:~> chmod o= report-20020115.xls jacky:~> ls -l report-20020115.xls -rw-rw---- 1 jacky project 45635 Jan 15 09:35 report-20020115.xls

This way, users in the group project will be able to work on this file. Users not in this group have no business with it at all.

Both chown and chgrp can be used to change ownership recursively, using the -R option. In that case, all underlying files and subdirectories of a given directory will belong to the given user and/or group.

Restrictions

On most systems, the use of the chown and chgrp commands is restricted for non-privileged users. If you are not the administrator of the system, you can not change user nor group ownerships for security reasons. If the usage of these commands would not be restricted, malicious users could assign ownership of files to other users and/or groups and change behavior of those users' environments and even cause damage to other users' files.

3.6.1. Partitions

• On which partition is your home directory?

• How many partitions are on your system?

• What is the total size of your Linux installation?

3.6.2. Paths

• Display your search path.

• Export a senseless path by entering, for instance, export PATH=blah and try listing directory content.

• What is the path to your home directory? How would another user reach your home directory starting from his own home directory, using a relative path?

• Go to the tmp directory in /var.

• Now go to share in /usr using only one command. Change to doc. What is your present working directory?

3.6.3. Tour of the system

• Change to the /proc directory.

• What CPU(s) is the system running on?

• How much RAM does it currently use?

• How much swap space do you have?

• What drivers are loaded?

• How many hours has the system been running?

• Change to /etc/rc.d and choose the directory appropriate for your run level.

• What services should be running in this level?

• Which services run in graphical mode that don't run in text mode?

• Change to /etc

• How long does the system keep the log file in which user logins are monitored?

• Which release are you running?

• Are there any issues or messages of the day?

• How many users are defined on your system? Don't count them, let the computer do it for you!

• How many groups?

• Where is the time zone information kept?

• Are the HOWTOs installed on your system?

• Change to /usr/share/doc.

• Name three programs that come with the GNU coreutils package.

• Which version of bash is installed on this system?

3.6.4. Manipulating files

• Create a new directory in your home directory.

• Can you move this directory to the same level as your home directory?

• Copy all XPM files from /usr/share/pixmaps to the new directory. What does XPM mean?

• List the files in reverse alphabetical order.

• Make a directory for files starting with an upper case character and one for files starting with a lower case character. Move all the files to the appropriate directories.

• Remove the remaining files.

• Delete the directory and its entire content using a single command.

• Use grep to find out which script starts the Font Server in the graphical run level.

• Where is the sendmail server program?

• Make a symbolic link in your home directory to /var/tmp. Check that it really works.

• Make another symbolic link in your home directory to this link. Check that it works. Remove the first link and list directory content. What happened to the second link?

3.6.5. File permissions

• Can you change file permissions on /home?

• What is your standard file creation mode?

• Change ownership of /etc to your own user and group.

• Change file permissions of ~/.bashrc so that only you and your primary group can read it.

• Issue the command locate root. Do you notice anything special?

• Make a symbolic link to /root. Can it be used?

4.1.1. Multi-user and multi-tasking

Now that we are more used to our environment and we are able to communicate a little bit with our system, it is time to study the processes we can start in more detail. Not every command starts a single process. Some commands initiate a series of processes, such as mozilla; others, like ls, are executed as a single command.

Furthermore, Linux is based on UNIX, where it has been common policy to have multiple users running multiple commands, at the same time and on the same system. It is obvious that measures have to be taken to have the CPU manage all these processes, and that functionality has to be provided so users can switch between processes. In some cases, processes will have to continue to run even when the user who started them logs out. And users need a means to reactivate interrupted processes.

We will explain the structure of Linux processes in the next sections.

4.1.2. Process types

billy:~> xterm &
[1] 26558

billy:~> jobs
[1]+  Running                 xterm &

4.1.3. Process attributes

A process has a series of characteristics:

• The process ID or PID: a unique identification number used to refer to the process.

• The parent process ID or PPID: the number of the process that started this process.

• Nice number: the degree of friendliness of this process toward other processes (not to be confused with process priority, which is calculated based on this nice number and recent CPU usage of the process).

• Terminal or TTY: terminal to which the process is connected.

• User name of the real and effective user (RUID and EUID): the owner of the process. The real owner is the user issuing the command, the effective user is the one determining access to system resources. RUID and EUID are usually the same, and the process has the same access rights the issuing user would have. An example to clarify this: the browser mozilla in /usr/bin is owned by user root:

  theo:~> ls -l /usr/bin/mozilla -rwxr-xr-x 1 root root 4996 Nov 20 18:28 /usr/bin/mozilla* theo:~> mozilla & [1] 26595 theo:~> ps -af UID PID PPID C STIME TTY TIME CMD theo 26601 26599 0 15:04 pts/5 00:00:00 /usr/lib/mozilla/mozilla-bin theo 26613 26569 0 15:04 pts/5 00:00:00 ps -af

  When user theo starts this program, the process itself and all processes started by the initial process, will be owned by user theo and not by the system administrator. When mozilla needs access to certain files, that access will be determined by theo's permissions and not by root's.

• Real and effective group owner (RGID and EGID): The real group owner of a process is the primary group of the user who started the process. The effective group owner is usually the same, except when SGID access mode has been applied to a file.

4.1.4. Displaying process information

The ps command is one of the tools for visualizing processes. This command has several options which can be combined to display different process attributes.

With no options specified, ps only gives information about the current shell and eventual processes:

theo:~> ps
  PID TTY          TIME CMD
 4245 pts/7    00:00:00 bash
 5314 pts/7    00:00:00 ps

Since this does not give enough information - generally, at least a hundred processes are running on your system - we will usually select particular processes out of the list of all processes, using the grep command in a pipe, see Section 5.1.1.1, as in this line, which will select and display all processes owned by a particular user:

ps -ef | grep username

This example shows all processes with a process name of bash, the most common login shell on Linux systems:

theo:> ps auxw | grep bash
brenda   31970  0.0  0.3  6080 1556 tty2   S  Feb23   0:00 -bash
root     32043  0.0  0.3  6112 1600 tty4   S  Feb23   0:00 -bash
theo     32581  0.0  0.3  6384 1864 pts/1  S  Feb23   0:00 bash
theo     32616  0.0  0.3  6396 1896 pts/2  S  Feb23   0:00 bash
theo     32629  0.0  0.3  6380 1856 pts/3  S  Feb23   0:00 bash
theo      2214  0.0  0.3  6412 1944 pts/5  S  16:18   0:02 bash
theo      4245  0.0  0.3  6392 1888 pts/7  S  17:26   0:00 bash
theo      5427  0.0  0.1  3720  548 pts/7  S  19:22   0:00 grep bash

In these cases, the grep command finding lines containing the string bash is often displayed as well on systems that have a lot of idletime. If you don't want this to happen, use the pgrep command.

Bash shells are a special case: this process list also shows which ones are login shells (where you have to give your username and password, such as when you log in in textmode or do a remote login, as opposed to non-login shells, started up for instance by clicking a terminal window icon). Such login shells are preceded with a dash (-).

More info can be found the usual way: ps --help or man ps. GNU ps supports different styles of option formats; the above examples don't contain errors.

Note that ps only gives a momentary state of the active processes, it is a one-time recording. The top program displays a more precise view by updating the results given by ps (with a bunch of options) once every five seconds, generating a new list of the processes causing the heaviest load periodically, meanwhile integrating more information about the swap space in use and the state of the CPU, from the proc file system:

 12:40pm up 9 days, 6:00, 4 users, load average: 0.21, 0.11, 0.03
89 processes: 86 sleeping, 3 running, 0 zombie, 0 stopped
CPU states:  2.5% user,  1.7% system,  0.0% nice, 95.6% idle
Mem:   255120K av, 239412K used, 15708K free, 756K shrd, 22620K buff
Swap: 1050176K av, 76428K used, 973748K free, 82756K cached

  PID USER  PRI NI SIZE  RSS SHARE STAT %CPU %MEM TIME COMMAND
 5005 root  14  0 91572  15M 11580 R    1.9  6.0  7:53 X
19599 jeff  14  0  1024 1024   796 R    1.1  0.4  0:01 top
19100 jeff   9  0  5288 4948  3888 R    0.5  1.9  0:24 gnome-terminal
19328 jeff   9  0 37884  36M 14724 S    0.5 14.8  1:30 mozilla-bin
    1 root   8  0   516  472   464 S    0.0  0.1  0:06 init
    2 root   9  0     0    0     0 SW   0.0  0.0  0:02 keventd
    3 root   9  0     0    0     0 SW   0.0  0.0  0:00 kapm-idled
    4 root  19 19     0    0     0 SWN  0.0  0.0  0:00 ksoftirqd_CPU0
    5 root   9  0     0    0     0 SW   0.0  0.0  0:33 kswapd
    6 root   9  0     0    0     0 SW   0.0  0.0  0:00 kreclaimd
    7 root   9  0     0    0     0 SW   0.0  0.0  0:00 bdflush
    8 root   9  0     0    0     0 SW   0.0  0.0  0:05 kupdated
    9 root  -1-20     0    0     0 SW<  0.0  0.0  0:00 mdrecoveryd
   13 root   9  0     0    0     0 SW   0.0  0.0  0:01 kjournald
   89 root   9  0     0    0     0 SW   0.0  0.0  0:00 khubd
  219 root   9  0     0    0     0 SW   0.0  0.0  0:00 kjournald
  220 root   9  0     0    0     0 SW   0.0  0.0  0:00 kjournald

The first line of top contains the same information displayed by the uptime command:

jeff:~> uptime
  3:30pm, up 12 days, 23:29, 6 users, load average: 0.01, 0.02, 0.00

The data for these programs is stored among others in /var/run/utmp (information about currently connected users) and in the virtual file system /proc, for example /proc/loadavg (average load information). There are all sorts of graphical applications to view this data, such as the Gnome System Monitor and lavaps. Open Source initiatives like Big Brother centralize this information along with other server data and logs from multiple servers on one web server, allowing monitoring of the entire IT infrastructure from one workstation.

The relations between processes can be visualized using the pstree command:

sophie:~> pstree
init-+-amd
     |-apmd
     |-2*[artsd]
     |-atd
     |-crond
     |-deskguide_apple
     |-eth0
     |-gdm---gdm-+-X
     |           `-gnome-session-+-Gnome
     |                           |-ssh-agent
     |                           `-true
     |-geyes_applet
     |-gkb_applet
     |-gnome-name-serv
     |-gnome-smproxy
     |-gnome-terminal-+-bash---vim
     |                |-bash
     |                |-bash---pstree
     |                |-bash---ssh
     |                |-bash---mozilla-bin---mozilla-bin---3*[mozilla-bin]
     |                `-gnome-pty-helper
     |-gpm
     |-gweather
     |-kapm-idled
     |-3*[kdeinit]
     |-keventd
     |-khubd
     |-5*[kjournald]
     |-klogd
     |-lockd---rpciod
     |-lpd
     |-mdrecoveryd
     |-6*[mingetty]
     |-8*[nfsd]
     |-nscd---nscd---5*[nscd]
     |-ntpd
     |-3*[oafd]
     |-panel
     |-portmap
     |-rhnsd
     |-rpc.mountd
     |-rpc.rquotad
     |-rpc.statd
     |-sawfish
     |-screenshooter_a
     |-sendmail
     |-sshd---sshd---bash---su---bash
     |-syslogd
     |-tasklist_applet
     |-vmnet-bridge
     |-xfs
     `-xinetd-ipv6

The -u and -a options give additional information, and for more, refer to the Info pages.

In the next section, we will see how one process can create another.

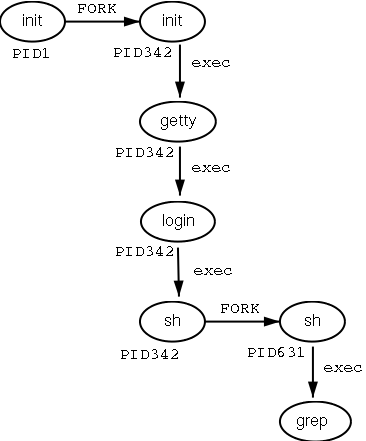

4.1.5. Life and death of a process

4.1.6. SUID and SGID

As promised in the previous chapter, we will now discuss the special modes SUID and SGID in more detail. These modes exist to provide normal users the ability to execute tasks they would normally not be able to do because of the tight file permission scheme used on UNIX based systems. In the ideal situation special modes are used as sparsely as possible, since they include security risks. Linux developers have generally tried to avoid them as much as possible. The Linux ps version, for example, uses the information stored in the /proc file system, which is accessible to everyone, thus avoiding exposition of sensitive system data and resources to the general public. Before that, and still on older UNIX systems, the ps program needed access to files such as /dev/mem and /dev/kmem, which had disadvantages because of the permissions and ownerships on these files:

rita:~> ls -l /dev/*mem
crw-r-----    1 root     kmem       1,   2 Aug 30 22:30 /dev/kmem
crw-r-----    1 root     kmem       1,   1 Aug 30 22:30 /dev/mem

With older versions of ps, it was not possible to start the program as a common user, unless special modes were applied to it.

While we generally try to avoid applying any special modes, it is sometimes necessary to use an SUID. An example is the mechanism for changing passwords. Of course users will want to do this themselves instead of having their password set by the system administrator. As we know, user names and passwords are listed in the /etc/passwd file, which has these access permissions and owners:

bea:~> ls -l /etc/passwd
-rw-r--r--    1 root     root     1267 Jan 16 14:43 /etc/passwd

Still, users need to be able to change their own information in this file. This is achieved by giving the passwd program special permissions:

mia:~> which passwd
passwd is /usr/bin/passwd

mia:~> ls -l /usr/bin/passwd
-r-s--x--x    1 root     root    13476 Aug  7 06:03 /usr/bin/passwd*

When called, the passwd command will run using the access permissions of root, thus enabling a common user to edit the password file which is owned by the system admin.

SGID modes on a file don't occur nearly as frequently as SUID, because SGID often involves the creation of extra groups. In some cases, however, we have to go through this trouble in order to build an elegant solution (don't worry about this too much - the necessary groups are usually created upon installation). This is the case for the write and wall programs, which are used to send messages to other users' terminals (ttys). The write command writes a message to a single user, while wall writes to all connected users.

Sending text to another user's terminal or graphical display is normally not allowed. In order to bypass this problem, a group has been created, which owns all terminal devices. When the write and wall commands are granted SGID permissions, the commands will run using the access rights as applicable to this group, tty in the example. Since this group has write access to the destination terminal, also a user having no permissions to use that terminal in any way can send messages to it.

In the example below, user joe first finds out on which terminal his correspondent is connected, using the who command. Then he sends her a message using the write command. Also illustrated are the access rights on the write program and on the terminals occupied by the receiving user: it is clear that others than the user owner have no permissions on the device, except for the group owner, which can write to it.

joe:~> which write
write is /usr/bin/write

joe:~> ls -l /usr/bin/write
-rwxr-sr-x    1 root     tty      8744 Dec  5 00:55 /usr/bin/write*

joe:~> who
jenny     tty1     Jan 23 11:41
jenny     pts/1    Jan 23 12:21 (:0)
jenny     pts/2    Jan 23 12:22 (:0)
jenny     pts/3    Jan 23 12:22 (:0)
joe       pts/0    Jan 20 10:13 (lo.callhost.org)

joe:~> ls -l /dev/tty1
crw--w----    1 jenny   tty  4,     1 Jan 23 11:41 /dev/tty1

joe:~> write jenny tty1
hey Jenny, shall we have lunch together?
^C

User jenny gets this on her screen:

Message from joe@lo.callhost.org on ptys/1 at 12:36 ...
hey Jenny, shall we have lunch together?
EOF

After receiving a message, the terminal can be cleared using the Ctrl+L key combination. In order to receive no messages at all (except from the system administrator), use the mesg command. To see which connected users accept messages from others use who -w. All features are fully explained in the Info pages of each command.

	Group names may vary
	The group scheme is specific to the distribution. Other distributions may use other names or other solutions.

4.2.1. Introduction

One of the most powerful aspects of Linux concerns its open method of starting and stopping the operating system, where it loads specified programs using their particular configurations, permits you to change those configurations to control the boot process, and shuts down in a graceful and organized way.

Beyond the question of controlling the boot or shutdown process, the open nature of Linux makes it much easier to determine the exact source of most problems associated with starting up or shutting down your system. A basic understanding of this process is quite beneficial to everybody who uses a Linux system.

A lot of Linux systems use lilo, the LInux LOader for booting operating systems. We will only discuss GRUB, however, which is easier to use and more flexible. Should you need information about lilo, refer to the man pages and HOWTOs. Both systems support dual boot installations, we refer to the HOWTOs on this subject for practical examples and background information.

4.2.2. The boot process

When an x86 computer is booted, the processor looks at the end of the system memory for the BIOS (Basic Input/Output System) and runs it. The BIOS program is written into permanent read-only memory and is always available for use. The BIOS provides the lowest level interface to peripheral devices and controls the first step of the boot process.

The BIOS tests the system, looks for and checks peripherals, and then looks for a drive to use to boot the system. Usually it checks the floppy drive (or CD-ROM drive on many newer systems) for bootable media, if present, and then it looks to the hard drive. The order of the drives used for booting is usually controlled by a particular BIOS setting on the system. Once Linux is installed on the hard drive of a system, the BIOS looks for a Master Boot Record (MBR) starting at the first sector on the first hard drive, loads its contents into memory, then passes control to it.

This MBR contains instructions on how to load the GRUB (or LILO) boot-loader, using a pre-selected operating system. The MBR then loads the boot-loader, which takes over the process (if the boot-loader is installed in the MBR). In the default Red Hat Linux configuration, GRUB uses the settings in the MBR to display boot options in a menu. Once GRUB has received the correct instructions for the operating system to start, either from its command line or configuration file, it finds the necessary boot file and hands off control of the machine to that operating system.

4.2.3. GRUB features

This boot method is called direct loading because instructions are used to directly load the operating system, with no intermediary code between the boot-loaders and the operating system's main files (such as the kernel). The boot process used by other operating systems may differ slightly from the above, however. For example, Microsoft's DOS and Windows operating systems completely overwrite anything on the MBR when they are installed without incorporating any of the current MBR's configuration. This destroys any other information stored in the MBR by other operating systems, such as Linux. The Microsoft operating systems, as well as various other proprietary operating systems, are loaded using a chain loading boot method. With this method, the MBR points to the first sector of the partition holding the operating system, where it finds the special files necessary to actually boot that operating system.

GRUB supports both boot methods, allowing you to use it with almost any operating system, most popular file systems, and almost any hard disk your BIOS can recognize.

GRUB contains a number of other features; the most important include:

• GRUB provides a true command-based, pre-OS environment on x86 machines to allow maximum flexibility in loading operating systems with certain options or gathering information about the system.

• GRUB supports Logical Block Addressing (LBA) mode, needed to access many IDE and all SCSI hard disks. Before LBA, hard drives could encounter a 1024-cylinder limit, where the BIOS could not find a file after that point.

• GRUB's configuration file is read from the disk every time the system boots, preventing you from having to write over the MBR every time you change the boot options.

A full description of GRUB may be found by issuing the info grub command or at the GRUB site. The Linux Documentation Project has a Multiboot with GRUB Mini-HOWTO.

4.2.4. Init

The kernel, once it is loaded, finds init in sbin and executes it.

When init starts, it becomes the parent or grandparent of all of the processes that start up automatically on your Linux system. The first thing init does, is reading its initialization file, /etc/inittab. This instructs init to read an initial configuration script for the environment, which sets the path, starts swapping, checks the file systems, and so on. Basically, this step takes care of everything that your system needs to have done at system initialization: setting the clock, initializing serial ports and so forth.

Then init continues to read the /etc/inittab file, which describes how the system should be set up in each run level and sets the default run level. A run level is a configuration of processes. All UNIX-like systems can be run in different process configurations, such as the single user mode, which is referred to as run level 1 or run level S (or s). In this mode, only the system administrator can connect to the system. It is used to perform maintenance tasks without risks of damaging the system or user data. Naturally, in this configuration we don't need to offer user services, so they will all be disabled. Another run level is the reboot run level, or run level 6, which shuts down all running services according to the appropriate procedures and then restarts the system.

Commonly, run level 3 is configured to be text mode on a Linux machine, and run level 5 initializes the graphical login and environment. More about run levels in the next section, see Section 4.2.5.

After having determined the default run level for your system, init starts all of the background processes necessary for the system to run by looking in the appropriate rc directory for that run level. init runs each of the kill scripts (their file names start with a K) with a stop parameter. It then runs all of the start scripts (their file names start with an S) in the appropriate run level directory so that all services and applications are started correctly. In fact, you can execute these same scripts manually after the system is finished booting with a command like /etc/rc.d/init.d/httpd stop or service httpd stop logged in as root, in this case stopping the web server.

None of the scripts that actually start and stop the services are located in /etc/rc.d/rc<x>.d. Rather, all of the files in /etc/rc.d/rc<x>.d are symbolic links that point to the actual scripts located in /etc/rc.d/init.d. A symbolic link is nothing more than a file that points to another file, and is used in this case because it can be created and deleted without affecting the actual scripts that kill or start the services. The symbolic links to the various scripts are numbered in a particular order so that they start in that order. You can change the order in which the services start up or are killed by changing the name of the symbolic link that refers to the script that actually controls the service. You can use the same number multiple times if you want a particular service started or stopped right before or after another service.

Below a sample of /etc/rc5.d content, which lists the services started up in run level 5:

[jean@blub /etc/rc5.d] ls
K15httpd@     K45named@    S08ipchains@  S25netfs@      S85gpm@
K16rarpd@     K46radvd@    S08iptables@  S26apmd@       S90crond@
K20nfs@       K61ldap@     S09isdn@      S28autofs@     S90xfs@
K20rstatd@    K65identd@   S10network@   S30nscd@       S95anacron@
K20rusersd@   K74ntpd@     S12syslog@    S55sshd@       S95atd@
K20rwalld@    K74ypserv@   S13portmap@   S56rawdevices@ S97rhnsd@
K20rwhod@     K74ypxfrd@   S14nfslock@   S56xinetd@     S99local@
K25squid@     K89bcm5820@  S17keytable@  S60lpd@
K34yppasswdd@  S05kudzu@    S20random@    S80sendmail@

After init has progressed through the run levels to get to the default run level, the /etc/inittab script forks a getty process for each virtual console (login prompt in text mode). getty opens tty lines, sets their modes, prints the login prompt, gets the user's name, and then initiates a login process for that user. This allows users to authenticate themselves to the system and use it. By default, most systems offer 6 virtual consoles, but as you can see from the inittab file, this is configurable.

/etc/inittab can also tell init how it should handle a user pressing Ctrl+Alt+Delete at the console. As the system should be properly shut down and restarted rather than immediately power-cycled, init is told to execute the command /sbin/shutdown -t3 -r now, for instance, when a user hits those keys. In addition, /etc/inittab states what init should do in case of power failures, if your system has a UPS unit attached to it.

In run level 5, /etc/inittab runs a script called /etc/X11/prefdm. The prefdm script runs the preferred X display manager, based on the contents of the /etc/sysconfig/desktop directory. This is typically gdm if you run GNOME or kdm if you run KDE, but they can be mixed, and there's also the xdm that comes with a standard X installation.

The /etc/sysconfig directory contains entries for a range of functions and services, these are all read at boot time. This last part, however, might be somewhat different depending on your Linux distribution.

Besides the graphical user environment, a lot of other services may be started as well. But if all goes well, you should be looking at a login prompt or login screen when the boot process has finished.

	Other procedures
	We explained how SysV init works on x86 based machines. Startup procedures may vary on other architectures and distributions. Other systems may use the BSD-style init, where startup files are not split up into multiple /etc/rc.d/rc<LEVEL>.d directories. It might also be possible that your system uses /etc/init.d instead of /etc/rc.d/init.d.

4.2.5. Init run levels

The idea behind operating different services at different run levels essentially revolves around the fact that different systems can be used in different ways. Some services cannot be used until the system is in a particular state, or mode, such as being ready for more than one user or having networking available.

There are times in which you may want to operate the system in a lower mode. Examples are fixing disk corruption problems in run level 1 so no other users can possibly be on the system, or leaving a server in run level 3 without an X session running. In these cases, running services that depend upon a higher system mode to function does not make sense because they will not work correctly anyway. By already having each service assigned to start when its particular run level is reached, you ensure an orderly start up process, and you can quickly change the mode of the machine without worrying about which services to manually start or stop.

Available run levels are generally described in /etc/inittab, which is partially shown below:

#
# inittab   This file describes how the INIT process should set up
#           the system in a certain run-level.

# Default runlevel. The runlevels are:
#   0 - halt (Do NOT set initdefault to this)
#   1 - Single user mode
#   2 - Multiuser, without NFS
#	(The same as 3, if you do not have networking)
#   3 - Full multiuser mode
#   4 - unused
#   5 - X11
#   6 - reboot (Do NOT set initdefault to this)
#
id:5:initdefault:
<--cut-->

Feel free to configure runlevels 2 and 4 as you see fit. Many users configure those runlevels in a way that makes the most sense for them while leaving the standard runlevels 3 and 5 alone. This allows them to quickly move in and out of their custom configuration without disturbing the normal set of features at the standard runlevels.

If your machine gets into a state where it will not boot due to a bad /etc/inittab or will not let you log in because you have a corrupted /etc/passwd file (or if you have simply forgotten your password), boot into single-user mode.

No graphics?

When you are working in text mode because you didn't get presented a graphical login screen on the console of your machine, you can normally switch to console 7 or up to have a graphical login. If this is not the case, check the current run level using the command who -r. If it is set to something else than 5, chances are that the system does not start up in graphical mode by default. Contact your system administrator or read man init in that case. Note that switching run levels is done using the init command; switching from a text to a graphical console or vice versa does not involve a run level switch.

4.2.6. Shutdown

UNIX was not made to be shut down, but if you really must, use the shutdown command. After completing the shutdown procedure, the -h option will halt the system, while -r will reboot it.

The reboot and halt commands are now able to invoke shutdown if run when the system is in runlevels 1-5, and thus ensure proper shutdown of the system,but it is a bad habit to get into, as not all UNIX/Linux versions have this feature.

If your computer does not power itself down, you should not turn off the computer until you see a message indicating that the system is halted or finished shutting down, in order to give the system the time to unmount all partitions. Being impatient may cause data loss.

4.3.1. Work for the system admin

While managing system resources, including processes, is a task for the local system administrator, it doesn't hurt a common user to know something about it, especially where his or her own processes and their optimal execution are concerned.

We will explain a little bit on a theoretical level about system performance, though not as far as hardware optimization and such. Instead, we will study the daily problems a common user is confronted with, and actions such a user can take to optimally use the resources available. As we learn in the next section, this is mainly a matter of thinking before acting.

4.3.2. How long does it take?

Bash offers a built-in time command that displays how long a command takes to execute. The timing is highly accurate and can be used on any command. In the example below, it takes about a minute and a half to make this book:

billy:~/xml/src> time make
Output written on abook.pdf (222 pages, 1619861 bytes).
Transcript written on abook.log.

real	1m41.056s
user	1m31.190s
sys	0m1.880s

The GNU time command in /usr/bin (as opposed to the shell built-in version) displays more information that can be formatted in different ways. It also shows the exit status of the command, and the total elapsed time. The same command as the above using the independent time gives this output:

billy:~/xml/src> /usr/bin/time make
Output written on abook.pdf (222 pages, 1595027 bytes).
Transcript written on abook.log.

Command exited with non-zero status 2
88.87user 1.74system 1:36.21elapsed 94%CPU
				(0avgtext+0avgdata 0maxresident)k
0inputs+0outputs (2192major+30002minor)pagefaults 0swaps

Refer again to the Info pages for all the information.

4.3.3. Performance

To a user, performance means quick execution of commands. To a system manager, on the other hand, it means much more: the system admin has to optimize system performance for the whole system, including users, all programs and daemons. System performance can depend on a thousand tiny things which are not accounted for with the time command:

• the program executing is badly written or doesn't use the computer appropriately

• access to disks, controllers, display, all kinds of interfaces, etc.

• reachability of remote systems (network performance)

• amount of users on the system, amount of users actually working simultaneously

• time of day

• ...

4.3.4. Load

In short: the load depends on what is normal for your system. My old P133 running a firewall, SSH server, file server, a route daemon, a sendmail server, a proxy server and some other services doesn't complain with 7 users connected; the load is still 0 on average. Some (multi-CPU) systems I've seen were quite happy with a load of 67. There is only one way to find out - check the load regularly if you want to know what's normal. If you don't, you will only be able to measure system load from the response time of the command line, which is a very rough measurement since this speed is influenced by a hundred other factors.

Keep in mind that different systems will behave different with the same load average. For example, a system with a graphics card supporting hardware acceleration will have no problem rendering 3D images, while the same system with a cheap VGA card will slow down tremendously while rendering. My old P133 will become quite uncomfortable when I start the X server, but on a modern system you hardly notice the difference in the system load.

4.3.5. Can I do anything as a user?

A big environment can slow you down. If you have lots of environment variables set (instead of shell variables), long search paths that are not optimized (errors in setting the path environment variable) and such, the system will need more time to search and read data.

In X, window managers and desktop environments can be real CPU-eaters. A really fancy desktop comes with a price, even when you can download it for free, since most desktops provide add-ons ad infinitum. Modesty is a virtue if you don't buy a new computer every year.

---

4.3.5.1. Priority

The priority or importance of a job is defined by it's nice number. A program with a high nice number is friendly to other programs, other users and the system; it is not an important job. The lower the nice number, the more important a job is and the more resources it will take without sharing them.

Making a job nicer by increasing its nice number is only useful for processes that use a lot of CPU time (compilers, math applications and such). Processes that always use a lot of I/O time are automatically rewarded by the system and given a higher priority (a lower nice number), for example keyboard input always gets highest priority on a system.

Defining the priority of a program is done with the nice command.

Most systems also provide the BSD renice command, which allows you to change the niceness of a running command. Again, read the man page for your system-specific information.

	Interactive programs
	It is NOT a good idea to nice or renice an interactive program or a job running in the foreground.

Use of these commands is usually a task for the system administrator.

---

4.3.5.7. Interrupting your processes

As a non-privileged user, you can only influence your own processes. We already saw how you can display processes and filter out processes that belong to a particular user, and what possible restrictions can occur. When you see that one of your processes is eating too much of the system's resources, there are two things that you can do:

1. Make the process use less resources without interrupting it;

2. Stop the process altogether.

In the case that you want the process to continue to run, but you also want to give the other processes on the system a chance, you can renice the process. Appart from using the nice or renice commands, top is an easy way of spotting the troublesome process(es) and reducing priority.

Identify the process in the "NI" column, it will most likely have a negative priority. Type r and enter the process ID of the process that you want to renice. Then enter the nice value, for instance "20". That means that from now on, this process will take 1/5 of the CPU cycles at the most.

Examples of processes that you want to keep on running are emulators, virtual machines, compilers and so on.

If you want to stop a process because it hangs or is going totally berserk in the way of I/O consumption, file creation or use of other system resources, use the kill. If you have the opportunity, first try to kill the process softly, sending it the SIGTERM signal. This is an instruction to terminate whatever it is doing, according to procedures as described in the code of the program:

joe:~> ps -ef | grep mozilla joe 25822 1 0 Mar11 ? 00:34:04 /usr/lib/mozilla-1.4.1/mozilla- joe:~> kill -15 25822

In the example above, user joe stopped his Mozilla browser because it hung.

Some processes are a little bit harder to get rid of. If you have the time, you might want to send them the SIGINT signal to interrupt them. If that does not do the trick either, use the strongest signal, SIGKILL. In the example below, joe stops a Mozilla that is frozen:

joe:~> ps -ef | grep mozilla joe 25915 1 0 Mar11 ? 00:15:06 /usr/lib/mozilla-1.4.1/mozilla- joe:~> kill -9 25915 joe:~> ps -ef | grep 25915 joe 2634 32273 0 18:09 pts/4 00:00:00 grep 25915

In such cases, you might want to check that the process is really dead, using the grep filter again on the PID. If this only returns the grep process, you can be sure that you succeeded in stopping the process.

Among processes that are hard to kill is your shell. And that is a good thing: if they would be easy to kill, you woud loose your shell every time you type Ctrl-C on the command line accidentally, since this is equivalent to sending a SIGINT.

	UNIX without pipes is almost unthinkable
	The usage of pipes (|) for using output of one command as input of another is explained in the next chapter, Chapter 5.

In a graphical environment, the xkill program is very easy to use. Just type the name of the command, followed by an Enter and select the window of the application that you want to stop. It is rather dangerous because it sends a SIGKILL by default, so only use it when an application hangs.

4.4.1. Use that idle time!

A Linux system can have a lot to suffer from, but it usually suffers only during office hours. Whether in an office environment, a server room or at home, most Linux systems are just idling away during the morning, the evening, the nights and weekends. Using this idle time can be a lot cheaper than buying those machines you'd absolutely need if you want everything done at the same time.

There are three types of delayed execution:

• Waiting a little while and then resuming job execution, using the sleep command. Execution time depends on the system time at the moment of submission.

• Running a command at a specified time, using the at command. Execution of the job(s) depends on system time, not the time of submission.

• Regularly running a command on a monthly, weekly, daily or hourly basis, using the cron facilities.

The following sections discuss each possibility.

4.4.2. The sleep command

The Info page on sleep is probably one of the shortest there is. All sleep does is wait. By default the time to wait is expressed in seconds.

So why does it exist? Some practical examples:

Somebody calls you on the phone, you say "Yes I'll be with you in half an hour" but you're about drowned in work as it is and bound to forget your lunch:

(sleep 1800; echo "Lunch time..") &

When you can't use the at command for some reason, it's five o'clock, you want to go home but there's still work to do and right now somebody is eating system resources:

(sleep 10000; myprogram) &

Make sure there's an auto-logout on your system, and that you log out or lock your desktop/office when submitting this kind of job, or run it in a screen session.

When you run a series of printouts of large files, but you want other users to be able to print in between:

lp lotoftext; sleep 900; lp hugefile; sleep 900; lp anotherlargefile

Printing files is discussed in Chapter 8.

Programmers often use the sleep command to halt script or program execution for a certain time.

4.4.3. The at command

The at command executes commands at a given time, using your default shell unless you tell the command otherwise (see the man page).

The options to at are rather user-friendly, which is demonstrated in the examples below:

steven@home:~> at tomorrow + 2 days
warning: commands will be executed using (in order) a) $SHELL
        b) login shell c) /bin/sh
at>  cat reports | mail myboss@mycompany
at> <EOT>
job 1 at 2001-06-16 12:36

Typing Ctrl+D quits the at utility and generates the "EOT" message.

User steven does a strange thing here combining two commands; we will study this sort of practice in Chapter 5, Redirecting Input and Output.

steven@home:~> at 0237
warning: commands will be executed using (in order) a) $SHELL
        b) login shell c) /bin/sh
at>  cd new-programs
at>  ./configure; make
at> <EOT>
job 2 at 2001-06-14 02:00

The -m option sends mail to the user when the job is done, or explains when a job can't be done. The command atq lists jobs; perform this command before submitting jobs in order prevent them from starting at the same time as others. With the atrm command you can remove scheduled jobs if you change your mind.

It is a good idea to pick strange execution times, because system jobs are often run at "round" hours, as you can see in Section 4.4.4 the next section. For example, jobs are often run at exactly 1 o'clock in the morning (e.g. system indexing to update a standard locate database), so entering a time of 0100 may easily slow your system down rather than fire it up. To prevent jobs from running all at the same time, you may also use the batch command, which queues processes and feeds the work in the queue to the system in an evenly balanced way, preventing excessive bursts of system resource usage. See the Info pages for more information.

4.4.4. Cron and crontab

The cron system is managed by the cron daemon. It gets information about which programs and when they should run from the system's and users' crontab entries. Only the root user has access to the system crontabs, while each user should only have access to his own crontabs. On some systems (some) users may not have access to the cron facility.

At system startup the cron daemon searches /var/spool/cron/ for crontab entries which are named after accounts in /etc/passwd, it searches /etc/cron.d/ and it searches /etc/crontab, then uses this information every minute to check if there is something to be done. It executes commands as the user who owns the crontab file and mails any output of commands to the owner.

On systems using Vixie cron, jobs that occur hourly, daily, weekly and monthly are kept in separate directories in /etc to keep an overview, as opposed to the standard UNIX cron function, where all tasks are entered into one big file.

Example of a Vixie crontab file:

[root@blob /etc]# more crontab
SHELL=/bin/bash
PATH=/sbin:/bin:/usr/sbin:/usr/bin
MAILTO=root
HOME=/

# run-parts
# commands to execute every hour
01 * * * * root run-parts /etc/cron.hourly
# commands to execute every day
02 4 * * * root run-parts /etc/cron.daily
# commands to execute every week
22 4 * * 0 root run-parts /etc/cron.weekly
commands to execute every month
42 4 1 * * root run-parts /etc/cron.monthly

Some variables are set, and after that there's the actual scheduling, one line per job, starting with 5 time and date fields. The first field contains the minutes (from 0 to 59), the second defines the hour of execution (0-23), the third is day of the month (1-31), then the number of the month (1-12), the last is day of the week (0-7, both 0 and 7 are Sunday). An asterisk in these fields represents the total acceptable range for the field. Lists are allowed; to execute a job from Monday to Friday enter 1-5 in the last field, to execute a job on Monday, Wednesday and Friday enter 1,3,5.

Then comes the user who should run the processes which are listed in the last column. The example above is from a Vixie cron configuration where root runs the program run-parts on regular intervals, with the appropriate directories as options. In these directories, the actual jobs to be executed at the scheduled time are stored as shell scripts, like this little script that is run daily to update the database used by the locate command:

billy@ahost cron.daily]$ cat slocate.cron
#!/bin/sh
renice +19 -p $$ >/dev/null 2>&1
/usr/bin/updatedb -f "nfs,smbfs,ncpfs,proc,devpts" -e \
"/tmp,/var/tmp, /usr/tmp,/afs,/net"

Users are supposed to edit their crontabs in a safe way using the crontab -e command. This will prevent a user from accidentally opening more than one copy of his/her crontab file. The default editor is vi (see Chapter 6, but you can use any text editor, such as gvim or gedit if you feel more comfortable with a GUI editor.

When you quit, the system will tell you that a new crontab is installed.

This crontab entry reminds billy to go to his sports club every Thursday night:

billy:~> crontab -l
# DO NOT EDIT THIS FILE - edit the master and reinstall.
# (/tmp/crontab.20264 installed on Sun Jul 20 22:35:14 2003)
# (Cron version -- $Id: chap4.xml,v 1.16 2004/07/09 05:34:22 tille Exp $)
38 16 * * 3 mail -s "sports evening" billy

After adding a new scheduled task, the system will tell you that a new crontab is installed. You do not need to restart the crond daemon for the changes to take effect. In the example, billy added a new line pointing to a backup script:

billy:~> crontab -e
45 15 * * 3 mail -s "sports evening" billy
4 4 * * 4,7 /home/billy/bin/backup.sh

<--write and quit-->

crontab: installing new crontab

billy:~>

The backup.sh script is executed every Thursday and Sunday. See Section 7.2.5 for an introduction to shell scripting. Keep in mind that output of commands, if any, is mailed to the owner of the crontab file. If no mail service is configured, you might find the output of your commands in your local mailbox, /var/spool/mail/<your_username>, a plain text file.

	Who runs my commands?
	You don't have to specify the user who should run the commands. They are executed with the user's own permissions by default.

4.6.1. General

• Run top in one terminal while you do the exercises in another.

• Run the ps command.

• Read the man pages to find out how to display all your processes.

• Run the command find /. What effect does it have on system load? Stop this command.

• In graphical mode, start the xclock program in the foreground. Then let it run in the background. Stop the program using the kill command.

• What does kill -9 -1 do?

• Open two terminals or terminal windows again and use write to send a message from one to the other.

• Issue the dmesg command. What does it tell?

• How long does it take to execute ls in the current directory?

• Based on process entries in /proc, owned by your UID, how would you work to find out which processes these actually represent?

• How long has your system been running?

• Which is your current TTY?

• Name 3 processes that couldn't have had init as an initial parent.

• Name 3 commands which use SUID mode. Explain why this is so.

• Name the commands that are generally causing the highest load on your system.

4.6.2. Booting, init etc.

• Can you reboot the system as a normal user? Why is that?

• According to your current runlevel, name the steps that are taken during shutdown.

• How do you change the system runlevel? Switch from 3 to 5 and vice versa.

• Which kernel is currently load at startup?

• Suppose you have to start some exotic server at boot time. Up until now, you logged in after booting the system and started this server manually using a script named deliver_pizza in your home directory. What do you have to do in order to have the service start up automatically in run level 4, which you defined for this purpose only?

4.6.3. Scheduling

• Use sleep to create a reminder that your pasta is ready in ten minutes.

• Create an at job that copies all files in your home directory to /var/tmp within half an hour. You may want to create a sub-directory in /var/tmp.

• Make a cronjob that does this task every Monday to Friday during lunch.

• Check that it works.

• Make a mistake in the crontab entry, like issuing the nonexistent command coppy instead of cp. What happens upon execution of the task?

5.1.1. The redirection operators

nancy:~> cat test1
some words

nancy:~> cat test2
some other words

nancy:~> cat test1 test2 > test3

nancy:~> cat test3
some words
some other words

nancy:~> ls -l list
-rw-rw-r--    1 nancy   nancy     117 Apr  2 18:09 list

nancy:~> > list

nancy:~> ls -l list
-rw-rw-r--    1 nancy   nancy       0 Apr  4 12:01 list

nancy:~> ls -l newlist
ls: newlist: No such file or directory

nancy:~> > newlist

nancy:~> ls -l newlist
-rw-rw-r--  1 nancy   nancy	    0 Apr  4 12:05 newlist

andy:~> mail mike@somewhere.org < to_do

---

5.1.1.3. Combining redirections

The following example combines input and output redirection. The file text.txt is first checked for spelling mistakes, and the output is redirected to an error log file:

aspell < text.txt > error.log

It might be that you have to use the following syntax to spell a file (check with the man pages):

aspell -H list < file.txt | sort -u

This also uses input and output redirection.

The following command lists all commands that you can issue to examine another file when using less:

mike:~> less --help | grep -i examine :e [file] Examine a new file. :n * Examine the (N-th) next file from the command line. :p * Examine the (N-th) previous file from the command line. :x * Examine the first (or N-th) file from the command line.

The -i option is used for case-insensitive searches - remember that UNIX systems are very case-sensitive.

If you want to save output of this command for future reference, redirect the output to a file:

mike:~> less --help | grep -i examine > examine-files-in-less mike:~> cat examine-files-in-less :e [file] Examine a new file. :n * Examine the (N-th) next file from the command line. :p * Examine the (N-th) previous file from the command line. :x * Examine the first (or N-th) file from the command line.

Output of one command can be piped into another command virtually as many times as you want, just as long as these commands would normally read input from standard input and write output to the standard output. Sometimes they don't, but then there may be special options that instruct these commands to behave according to the standard definitions; so read the documentation (man and info pages) of the commands you use if you should encounter errors.

	Don't overwrite!
	Be careful not to overwrite existing (important) files when redirecting output. Many shells, including Bash, have a built-in feature to protect you from that risk: noclobber. See the Info pages for more information. In Bash, you would want to add the set -o noclobber command to your .bashrc configuration file in order to prevent accidental overwriting of files.

mike:~> date >> wishlist

mike:~> cat wishlist
more money
less work
Thu Feb 28 20:23:07 CET 2002

5.1.2. Advanced redirection features

andy:~/newsoft> make all 2>&1 | less
--output ommitted--

andy:~/newsoft> make all 2> /dev/pts/7

mireille ~/test> date | tee file1 file2
Thu Jun 10 11:10:34 CEST 2004

mireille ~/test> cat file1
Thu Jun 10 11:10:34 CEST 2004

mireille ~/test> cat file2
Thu Jun 10 11:10:34 CEST 2004

mireille ~/test> uptime | tee -a file2
 11:10:51 up 21 days, 21:21, 57 users,  load average: 0.04, 0.16, 0.26

mireille ~/test> cat file2
Thu Jun 10 11:10:34 CEST 2004
 11:10:51 up 21 days, 21:21, 57 users,  load average: 0.04, 0.16, 0.26

5.1.3. Filters

When a program performs operations on input and writes the result to the standard output, it is called a filter. One of the most common uses of filters is to restructure output. We'll discuss a couple of the most important filters below.

jenny:~> ls -la | grep Feb

---

5.1.3.2. Filtering output

The command sort arranges lines in alphabetical order by default:

thomas:~> cat people-I-like | sort Auntie Emmy Boyfriend Dad Grandma Mum My boss

But there are many more things sort can do. Looking at the file size, for instance. With this command, directory content is sorted smallest files first, biggest files last:

ls -la | sort -nk 5

	Old sort syntax
	You might obtain the same result with ls -la | sort +4n, but this is an old form which does not comply with the current standards.

The sort command is also used in combination with the uniq program (or sort -u) to sort output and filter out double entries.

6.1.1. Why should I use an editor?

It is very important to be able to use at least one text mode editor. Knowing how to use an editor on your system is the first step to independence.

We will need to master an editor by the next chapter as we need it to edit files that influence our environment. As an advanced user, you may want to start writing scripts, or books, develop websites or new programs. Mastering an editor will immensely improve your productivity as well as your capabilities.

6.1.2. Which editor should I use?

Our focus is on text editors, which can also be used on systems without a graphical environment and in terminal windows. The additional advantage of mastering a text editor is in using it on remote machines. Since you don't need to transfer the entire graphical environment over the network, working with text editors tremendously improves network speed.

There are, as usual, multiple ways to handle the problem. Let's see what editors are commonly available:

6.2.1. Two modes

The vi editor is a very powerful tool and has a very extensive built-in manual, which you can activate using the :help command when the program is started (instead of using man or info, which don't contain nearly as much information). We will only discuss the very basics here to get you started.

What makes vi confusing to the beginner is that it can operate in two modes: command mode and insert mode. The editor always starts in command mode. Commands move you through the text, search, replace, mark blocks and perform other editing tasks, and some of them switch the editor to insert mode.

This means that each key has not one, but likely two meanings: it can either represent a command for the editor when in command mode, or a character that you want in a text when in insert mode.

	Pronunciation
	It's pronounced "vee-eye".

6.2.2. Basic commands

6.2.3. The easy way

Instead of reading the text, which is quite boring, you can use the vimtutor to learn you first Vim commands. This is a thirty minute tutorial that teaches the most basic Vim functionality in eight easy exercises. While you can't learn everything about vim in just half an hour, the tutor is designed to describe enough of the commands that you will be able to easily use Vim as an all-purpose editor.

In UNIX and MS Windows, if Vim has been properly installed, you can start this program from the shell or command line, entering the vimtutor command. This will make a copy of the tutor file, so that you can edit it without the risk of damaging the original. There are a few translated versions of the tutor. To find out if yours is available, use the two-letter language code. For French this would be vimtutor fr (if installed on the system).

6.3.1. History

Throughout the last decade the office domain has typically been dominated by MS Office, and, let's face it: the MicroSoft Word, Excell and PowerPoint formats are industry standards that you will have to deal with sooner or later.

This monopoly situation of MicroSoft proved to be a big disadvantage for getting new users to Linux, so a group of German developers started the StarOffice project, that was, and is still, aimed at making an MS Office clone. Their company, StarDivision, was acquired by Sun Microsystems by the end of the 1990s, just before the 5.2 release. Sun continues development but restricted access to the sources. Nevertheless, development on the original set of sources continues in the Open Source community, which had to rename the project to OpenOffice. OpenOffice is now available for a variety of platforms, including MS Windows, Linux, MacOS and Solaris. There is a screenshot in Section 1.3.2.

Almost simultaneously, a couple of other quite famous projects took off. Also a very common alternative to using MS Office is KOffice, the office suite that is popular among KDE and/or SuSE users. Like the original, this clone incorporates an MS Word and Excell compatible program, and much more.

Smaller projects deal with particular programs of the MS example suite, such as Abiword and MS Wordview for compatibility with MS Word documents, and Gnumeric for viewing and creating Excell compatible spreadsheets.

6.3.2. Suites and programs

Current distributions usually come with all the necessary tools. Since these provide excellent guidelines and searchable indexes in the Help menus, we won't discuss them in detail. For references, see you system documentation or the web sites of the projects, such as

• http://www.openoffice.org

• http://www.koffice.org

• Freshmeat and SourceForge for various other projects.

6.3.3. Remarks

7.1.1. Introduction

As we mentioned before, it is easy enough to make a mess of the system. We can't put enough stress on the importance of keeping the place tidy. When you learn this from the start, it will become a good habit that will save you time when programming on a Linux or UNIX system or when confronted with system management tasks. Here are some ways of making life easier on yourself:

• Make a bin directory for your program files and scripts.

• Organize non-executable files in appropriate directories, and make as many directories as you like. Examples include separate directories for images, documents, projects, downloaded files, spreadsheets, personal files, and so on.

• Make directories private with the chmod 700 dirname command.

• Give your files sensible names, such as Complaint to the prime minister 050302 rather than letter1.

7.1.2. Make space

On some systems, the quota system may force you to clean up from time to time, or the physical limits of your hard disk may force you to make more space without running any monitoring programs. This section discusses a number of ways, besides using the rm command, to reclaim disk space.

Run the quota -v command to see how much space is left.

andy:~> cat wishlist > placeholder

andy:~> ls -la placeholder
-rw-rw-r--    1 andy   andy       200 Jun 12 13:34 placeholder

andy:~>  > placeholder

andy:~> ls -la placeholder

-rw-rw-r--    1 andy   andy         0 Jun 12 13:35 placeholder

andy:~> tail -5 wishlist > newlist

andy:~> cat newlist > wishlist

andy:~> rm newlist

webmaster@www ~/> cat .forward
mike@pandora.be

cindy:~> ulimit -a
core file size (blocks)     0
data seg size (kbytes)      unlimited
file size (blocks)          unlimited
max locked memory (kbytes)  unlimited
max memory size (kbytes)    unlimited
open files                  1024
pipe size (512 bytes)       8
stack size (kbytes)         8192
cpu time (seconds)          unlimited
max user processes          512
virtual memory (kbytes)     unlimited

7.2.1. Environment variables

debby:~> echo $PATH
/usr/bin:/usr/sbin:/bin:/sbin:/usr/X11R6/bin:/usr/local/bin

debby:~> echo $MANPATH
/usr/man:/usr/share/man/:/usr/local/man:/usr/X11R6/man

debby:~> PATH=$PATH:/opt/FlightGear/bin

debby:~> runfgfs
bash: runfgfs: command not found

debby:~> export PATH

debby:~> runfgfs
--flight simulator starts--

debby:~> export MANPATH=$MANPATH:/opt/FlightGear/man

debby:~> echo $MANPATH
/usr/man:/usr/share/man:/usr/local/man:/usr/X11R6/man:/opt/FlightGear/man

7.2.2. Shell setup files

When entering the ls -al command to get a long listing of all files, including the ones starting with a dot, in your home directory, you will see one or more files starting with a . and ending in rc. For the case of bash, this is .bashrc. This is the counterpart of the system-wide configuration file /etc/bashrc.

When logging into an interactive login shell, login will do the authentication, set the environment and start your shell. In the case of bash, the next step is reading the general profile from /etc, if that file exists. bash then looks for ~/.bash_profile, ~/.bash_login and ~/.profile, in that order, and reads and executes commands from the first one that exists and is readable. If none exists, /etc/bashrc is applied.

When a login shell exits, bash reads and executes commands from the file ~/.bash_logout, if it exists.

This procedure is explained in detail in the login and bash man pages.

7.2.3. A typical set of setup files

Let's look at some of these config files. First /etc/profile is read, in which important variables such as PATH, USER and HOSTNAME are set:

debby:~> cat /etc/profile
# /etc/profile

# System wide environment and startup programs, for login setup
# Functions and aliases go in /etc/bashrc


# Path manipulation
if [ `id -u` = 0 ] && ! echo $PATH | /bin/grep -q "/sbin" ; then
    PATH=/sbin:$PATH
fi

if [ `id -u` = 0 ] && ! echo $PATH | /bin/grep -q "/usr/sbin" ; then
    PATH=/usr/sbin:$PATH
fi

if [ `id -u` = 0 ] && ! echo $PATH | /bin/grep -q "/usr/local/sbin"
    then
    PATH=/usr/local/sbin:$PATH
fi

if ! echo $PATH | /bin/grep -q "/usr/X11R6/bin" ; then
    PATH="$PATH:/usr/X11R6/bin"
fi

These lines check the path to set: if root opens a shell (user ID 0), it is checked that /sbin, /usr/sbin and /usr/local/sbin are in the path. If not, they are added. It is checked for everyone that /usr/X11R6/bin is in the path.

# No core files by default
ulimit -S -c 0 > /dev/null 2>&1

All trash goes to /dev/null if the user doesn't change this setting.

USER=`id -un`
LOGNAME=$USER
MAIL="/var/spool/mail/$USER"

HOSTNAME=`/bin/hostname`
HISTSIZE=1000

Here general variables are assigned their proper values.

if [ -z "$INPUTRC" -a ! -f "$HOME/.inputrc" ]; then
    INPUTRC=/etc/inputrc
fi

If the variable INPUTRC is not set, and there is no .inputrc in the user's home directory, then the default input control file is loaded.

export PATH USER LOGNAME MAIL HOSTNAME HISTSIZE INPUTRC

All variables are exported, so that they are available to other programs requesting information about your environment.

for i in /etc/profile.d/*.sh ; do
    if [ -r $i ]; then
    	. $i
    fi
done
unset i

All readable shell scripts from the /etc/profile.d directory are read and executed. These do things like enabling color-ls, aliasing vi to vim, setting locales etc. The temporary variable i is unset to prevent it from disturbing shell behavior later on.

Then bash looks for a .bash_profile in the user's home directory:

debby:~> cat .bash_profile
#################################################################
#                                                               #
#   .bash_profile file                                          #
#                                                               #
#   Executed from the bash shell when you log in.               #
#                                                               #
#################################################################

source ~/.bashrc
source ~/.bash_login

This very straight forward file instructs your shell to first read ~/.bashrc and then ~/.bash_login. You will encounter the source built-in shell command regularly when working in a shell environment: it is used to apply configuration changes to the current environment.

The ~/.bash_login file defines default file protection by setting the umask value, see Section 3.4.2.2. The ~/.bashrc file is used to define a bunch of user-specific aliases and functions and personal environment variables. It first reads /etc/bashrc, which describes the default prompt (PS1) and the default umask value. After that, you can add your own settings. If no ~/.bashrc exists, /etc/bashrc is read by default:

debby:~> cat /etc/bashrc
# /etc/bashrc

# System wide functions and aliases
# Environment stuff goes in /etc/profile

# by default, we want this to get set.
# Even for non-interactive, non-login shells.
if [ `id -gn` = `id -un` -a `id -u` -gt 99 ]; then
	umask 002
else
	umask 022
fi

# are we an interactive shell?
if [ "$PS1" ]; then
  if [ -x /usr/bin/tput ]; then
    if [ "x`tput kbs`" != "x" ]; then
# We can't do this with "dumb" terminal
      stty erase `tput kbs`
    elif [ -x /usr/bin/wc ]; then
      if [ "`tput kbs|wc -c `" -gt 0 ]; then
# We can't do this with "dumb" terminal
        stty erase `tput kbs`
      fi
    fi
  fi
  case $TERM in
	xterm*)
	if [ -e /etc/sysconfig/bash-prompt-xterm ]; then
		PROMPT_COMMAND=/etc/sysconfig/bash-prompt-xterm
	else
   PROMPT_COMMAND='echo -ne "\033]0;${USER}@${HOSTNAME%%.*}:\
${PWD/$HOME/~}\007"'
	fi
    ;;
	*)
   [ -e /etc/sysconfig/bash-prompt-default ] && PROMPT_COMMAND=\
/etc/sysconfig/bash-prompt-default
	    ;;
    esac
    [ "$PS1" = "\\s-\\v\\\$ " ] && PS1="[\u@\h \W]\\$ "

    if [ "x$SHLVL" != "x1" ]; then # We're not a login shell
        for i in /etc/profile.d/*.sh; do
	    if [ -x $i ]; then
	        . $i
	    fi
	done
    fi
fi

Upon logout, the commands in ~/.bash_logout are executed, which can for instance clear the terminal, so that you have a clean window upon logging out of a remote session, or upon leaving the system console:

debby:~> cat .bash_logout
# ~/.bash_logout

clear

Let's take a closer look at how these scripts work in the next section. Keep info bash close at hand.

7.2.4. The Bash prompt

[jerry@nowhere jerry]$ MYPROMPT=$PS1

[jerry@nowhere jerry]$ echo $MYPROMPT
[\u@\h \W]\$

[jerry@nowhere jerry]$

7.2.5. Shell scripts

[jerry@nowhere ~] cat hello.sh
#!/bin/bash
echo "Hello $USER"

#!/bin/bash
who | cut -d " " -f 1 | sort -u

tille:~> cat /usr/local/bin/wav2mp3
#!/bin/bash
# convert *.wav into *.mp3
LIST=$(ls *.wav)
for i in $LIST; do
	ORIG=$i
	DEST=$(ls $i | cut -d "." -f 1).mp3
	lame -h $ORIG $DEST
	echo "done converting $i, removing.."
	rm $i
done

#!/bin/sh
# description: ICanSeeYou allows you to see networked people

# process name: ICanSeeYou
# pidfile: /var/run/ICanSeeYou/ICanSeeYou.pid
# config: /etc/ICanSeeYou.cfg

# Source function library.
. /etc/rc.d/init.d/functions

# See how (with which arguments) we were called.
case "$1" in
	start)
		echo -n "Starting ICanSeeYou: "
		daemon ICanSeeYou
		echo
		touch /var/lock/subsys/ICanSeeYou
		;;
	stop)
		echo -n "Shutting down ICanSeeYou: "
		killproc ICanSeeYou
		echo
		rm -f /var/lock/subsys/ICanSeeYou
		rm -f /var/run/ICanSeeYou/ICanSeeYou.pid
		;;
	status)
		status ICanSeeYou
		;;
	restart)
		$0 stop
		$0 start
		;;
	*)
		echo "Usage: $0 {start|stop|restart|status}"
		exit 1
esac

exit 0

7.3.1. Introduction

The average user may not care too much about his login settings, but Linux offers a wide variety of flashing window and desktop managers for use under X, the graphical environment. The use and configuration of window managers and desktops is straightforward and may even resemble the standard MS Windows, MacIntosh or UNIX CDE environment, although many Linux users prefer flashier desktops and fancier window managers. We won't discuss the user specific configuration here. Just experiment and read the documentation using the built-in Help functions these managers provide and you will get along fine.

We will, however, take a closer look at the underlying system.

7.3.2. The X Window System

The X Window System is a network-transparent window system which runs on a wide range of computing and graphics machines. X Window System servers run on computers with bitmap displays. The X server distributes user input to and accepts output requests from several client programs through a variety of different interprocess communication channels. Although the most common case is for the client programs to be running on the same machine as the server, clients can be run transparently from other machines (including machines with different architectures and operating systems) as well. We will learn how to do this in Chapter 10 on networking and remote applications.

X supports overlapping hierarchical sub-windows and text and graphics operations, on both monochrome and color displays. The number of X client programs that use the X server is quite large. Some of the programs provided in the core X Consortium distribution include:

• xterm: a terminal emulator

• twm: a minimalistic window manager

• xdm: a display manager

• xconsole: a console redirect program

• bitmap: a bitmap editor

• xauth, xhost and iceauth: access control programs

• xset, xmodmap and many others: user preference setting programs

• xclock: a clock

• xlsfonts and others: a font displayer, utilities for listing information about fonts, windows and displays

• xfs: a font server

• ...

We refer again to the man pages of these commands for detailed information. More explanations on available functions can be found in the Xlib - C language X Interface manual that comes with your X distribution, the X Window System Protocol specification, and the various manuals and documentation of X toolkits. The /usr/share/doc directory contains references to these documents and many others.

Many other utilities, window managers, games, toolkits and gadgets are included as user-contributed software in the X Consortium distribution, or are available using anonymous FTP on the Internet. Good places to start are http://www.x.org and http://www.xfree.org.

Furthermore, all your graphical applications, such as your browser, your E-mail program, your image viewing programs, sound playing tools and so on, are all clients to your X server. Note that in normal operation, that is in graphical mode, X clients and the X server on Linux run on the same machine.

---

7.3.2.2. Window and desktop managers

The layout of windows on the screen is controlled by special programs called window managers. Although many window managers will honor geometry specifications as given, others may choose to ignore them (requiring the user to explicitly draw the window's region on the screen with the pointer, for example).

Since window managers are regular (albeit complex) client programs, a variety of different user interfaces can be built. The X Consortium distribution comes with a window manager named twm, but most users prefer something more fancy when system resources permit. Sawfish and Enlightenment are popular examples which allow each user to have a desktop according to mood and style.

A desktop manager makes use of one window manager or another for arranging your graphical desktop in a convenient way, with menubars, drop-down menus, informative messages, a clock, a program manager, a file manager and so on. Among the most popular desktop managers are Gnome and KDE, which both run on almost any Linux distribution and many other UNIX systems.

KDE applications in Gnome/Gnome applications in KDE

You don't need to start your desktop in KDE in order to be able to run KDE applications. If you have the KDE libraries installed (the kdelibs package), you can run these applications from the Gnome menus or start them from a Gnome terminal. Running Gnome applications in a KDE environment is a bit more tricky, because there is no single set of base-libraries in Gnome. However, the dependencies and thus extra packages you might have to install will become clear when running or installing such an application.

7.3.3. X server configuration

The X distribution that comes with Linux, XFree86, uses the configuration file XF86Config for its initial setup. This file configures your video card and is searched for in a number of locations, although it is usually in /etc/X11. This file is composed of a number of sections which may be present in any order:

• Files: File pathnames

• ServerFlags: Server options

• Module: Dynamic module loading

• InputDevice: Input device description

• Device: Graphics device description

• VideoAdapter: Video adapter description

• Monitor: Monitor description

• Modes: Video modes (modlines) description

• Screen: Screen configuration

• ServerLayout: Overall layout

• DRI: DRI-specific configuration (3D settings)

• Vendor: Vendor-specific configuration

A full description can be found in the Info or man pages about XF86Config. As a user, you needn't worry too much about what is in this file, since everything is normally determined at the time the system is installed.

Should you need to change graphical server settings, however, you can run the configuration tools or edit the configuration files that set up the infrastructure to use the XFree86 server. See the man pages for more information; your distribution might have its own tools. Since misconfiguration may result in unreadable garbage in graphical mode, you may want to make a backup copy of the XF86Config file before attempting to change it, just to be on the safe side.

7.4.1. Sound card configuration
