Data Loss: Worst Case Scenario

Mounted nicht

Abstract:

One of the best decisions I ever made about Linux was to only use journaling file systems. This decision was proven right yesterday in a very convincing way. A botched copy process ate all the data on the partition, including the entire data of a Linux project, and made the partition unmountable.
On a ReiserFS journal file system ...

File systems with journaling are one of the goodies that make working with Linux secure. They ensure that you can use the reset button - usually (!) without any ill effects.
This report about a real-life data loss shows that it can sometimes have ill effects, and describes the bits and bytes' heroic rescue by a professionally operating Linux tool called 'reiserfsck'.

_________________ _________________ _________________



Linux introduction

Tux has been on my computer for about two years - three penguins now inhabit my computer. Two of the SuSE species, one of the Debian genus, Knoppix on the maternal line.

It all started with SuSE 7.3, a bargain snapped up on E-Bay. I'd already heard so much about Linux and wanted to become a Linux specialist myself, so this was my way of getting started.



Newbie problems ...

The first steps were definitely not easy. How often did I end up cursing the glut of new technical terms - especially since they are (usually) never explained.
When you read the first few sentences of the German distributors' manual, you are inundated with KDE, YaST, Bash, etc. ... and previously a big-name computer magazine had described it as the distribution with the best documentation ... Not a chance - nothing is simple or clear.

Sigh...but it passes. Back to the main point.



ReiserFS on EISA 486

This SuSE Linux 7.3 came on an old 486 that still had an EISA bus (...yes, those things do still exist.) The first hard reset (reset button) and subsequent restart caused problems. No more access to the file system, and only read-only mount (only read access).
"What's that supposed to mean?"
It means a lot of work. Repair attempts were fruitless...in the end, I just re-installed the whole SuSE.
This happened 5 or 6 times. Each time I booted with the SuSE recovery system, used the repair tool e2fsck for ext2 file systems, and once I also edited the /etc/fstab file with the miserable vi editor. Then the file system was OK...or maybe not. Finally, I reinstalled Linux. By that stage, a whole day was gone. This kind of stuff takes longer for newbies...

Then I got the idea - inspired by an article in c't - to install a YaST journaling file system. No sooner said than done, and since then I have been spared from starting the recovery system etc.
If the PC hadn't been properly shut down beforehand, I got a factual 'replayed nnn transactions in ...' while Linux was being started, and the computer booted successfully.
"Halleluia!" I think. That's better. From now on, no more ext2 - journaling is the way to go from here!


'Journal replay' of a ReiserFS partition during system start ... (from log file) :


..... reiserfs: found format "3.6" with standard journal reiserfs: checking transaction log (sd(8,4)) for (sd(8,4)) reiserfs: replayed 109 transactions in 10 seconds reiserfs: using ordered data mode .....


Stress tests

But I wanted to know for sure.
Once I was reasonably familiar with the JFs, I carried out stress tests. The file system was subjected to a hard reset with a fully-equipped interface.

Started KDE, with lots of programs, opened files with the editor, then pressed Reset button. The tests were successful. The file system really survived it.

Even activating 'emergency exit' during a running copy process caused no problems. The 486 SCSI system did cause a few problems, but ReiserFS 'does what it says on the tin'. It always returned the file system to a consistent, usable state. The opened files were likewise returned to their original state.
Tests I carried out later on under the same conditions with ext3, the journal variety of ext2, were also successful.

This is how it all looks in the log file with ext3 during system bootup:



..... Journalled Block Device driver loaded (recovery.c, 256): journal_recover: JBD: recovery, exit status 0, recovered transactions 450798 to 451415 (recovery.c, 258): journal_recover: JBD: Replayed 3756 and revoked 6/15 blocks kjournald starting. Commit interval 5 seconds EXT3 FS 2.4-0.9.19, 19 August 2002 on sd(8,1), internal journal ext3_orphan_cleanup: deleting unreferenced inode 355953 ext3_orphan_cleanup: deleting unreferenced inode 355952 EXT3-fs: sd(8,1): 2 orphan inodes deleted EXT3-fs: recovery complete. EXT3-fs: mounted filesystem with ordered data mode. .....


Other journal file systems

That was the preamble ...
Since then, I have also used ext3 and XFS.
I've stayed away from JFS, as it's not supposed to be fully secure yet. I'm not saying anything negative about it, I just haven't tried it yet.

XFS has disappeared. I don't mind; I didn't have any problems with it, but I just hadn't used it in a long time.
I have kept using the ext3 file system. It's now running on the 486 alongside a Debian / unstable.
With ext 2, it's even possible to change an existing partition to ext 3 with data - on the live system. I've tried it - it works!
I used ext 3 again when I last installed Knoppix version 3.4 on the hard disk.

Most file systems on my work PC - only a PIII/500 - are currently ReiserFS.

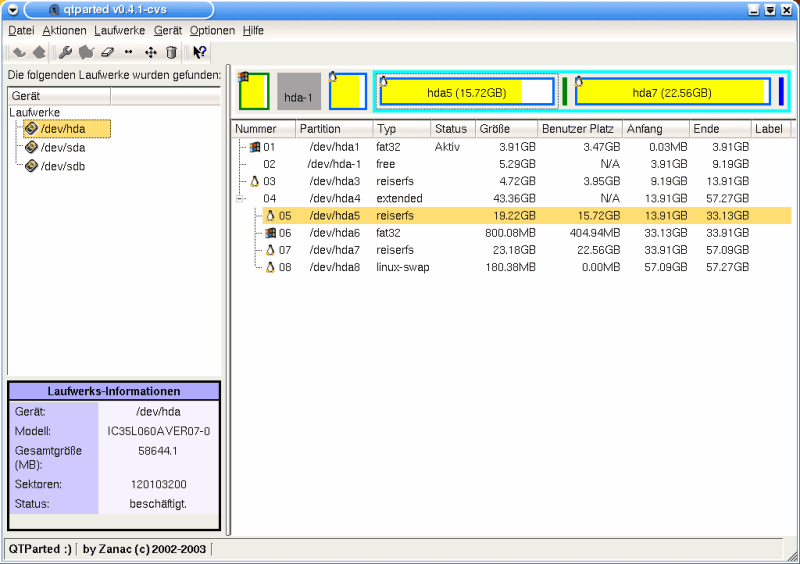

How the two disks on my work PC are divided up:

QtParted hda

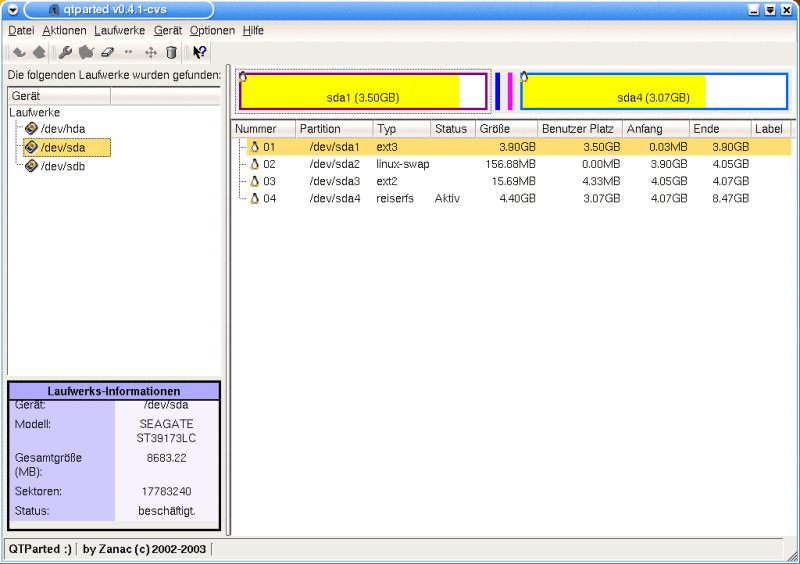

Graphic 2, sda partitioning (SCSI disk)


QtParted hda
Graphic 3, hda partitioning




D-day

I've been working on a documentation CD for Linux for the past 3/4 year. This involves large data volumes: howtos, tutorials, FAQs, plus different formats and archives in each case, and the same volume again for updates. I am also writing additional HTML files so that it's easy to get an overview of the CD-ROM.
There's been lots to do in the past few weeks. A free version of this CD is supposed to be available soon. So - put together an image, write a few command line burn scripts - it's just quicker than using a KDE program.
And put everything onto my hard disk. My data store is /dev/hda5 on a 60-Gig IDE disk. The partition is 20 Gigs (of which over 80% is already full). All important bits and bytes, lots of work involved. If anything were ever to happen to it ... oh, surely that's not very likely, it's not Windows with FATxx, after all.

I've often thought about backups, but never done one so far. I just have a few copies on a separate hard disk, and leave it at that.

Yesterday evening I left the Internet cafe, where I had downloaded packages from the SuSE website. They were all original SuSE documentation from 7.3 to 9.0 on CD 2. At home, I booted up the PC with SuSE 8.1. I usually use Debian, but because the packages were SuSE RPMs, I used 8.1 this time. And I was able to install the first 9.0 doc package. So it's no problem to install a newer package on version 8*. So I installed the 9.0 RPMs, copied them to the aforementioned hda5 partition, and then de-installed the RPMs. Then I did the same thing with 8.0.

Without closing down KDE, I changed to another console and entered <CTRL ALT> <DEL> to shut down the PC. I got an error message on the command line - I've forgotten exactly what it was - all I remember is...the PC has given up the ghost. Can't do anything...
OK, so I pressed the hard Reset button - I'm not afraid of doing that on Linux at all any more.



Worst case scenario

When I booted up Debian, I didn't notice anything at first. Then on the KDE level:
No directories are being shown on my work partition.
But it's full to bursting ... ?
It probably hasn't been mounted (no, rubbish - it's automatically mounted at startup).

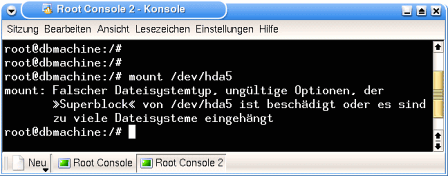

And then, after a 'mount /dev/hda5' error message - too many file systems - or wrong superblock. The penny is dropping...

What I'm experiencing here is a real-life data Worst Case Scenario.

And now? Erm ... maybe try mounting again? No point - if it didn't mount the first time, it's not going to happen the second time.
But I tried it anyway ... nada! The partition containing the results of months of research, lots of HTML pages I had written myself, scripts for burning CDs, collections of DEBs and RPMs from the Internet, and lots of other stuff - all gone, disappeared, in Nirvana or wherever else.
Of course, some data is still on the disk, but will I be able to access it again?

Lean back, light a cigarette ...
As a DIY man at heart, the first thing that came to mind was data recovery. The partition is a ReiserFS. There are tools for that. I once read something in an article about c't Knoppix; I originally installed Debian as Knoppix. So the tools should be there.
And they are there.



reiserfsck in an emergency operation

So: first, look for the doc directory. Must be under /usr/share/doc/reiser-something. Under Something (...should be called reiserfsprogs) I find a few English files, one for each tool, converted from the manpages.
A quick look through the operation tools for data recovery reveals that reiserfsck must be the 'scalpel'. OK, let's get started...

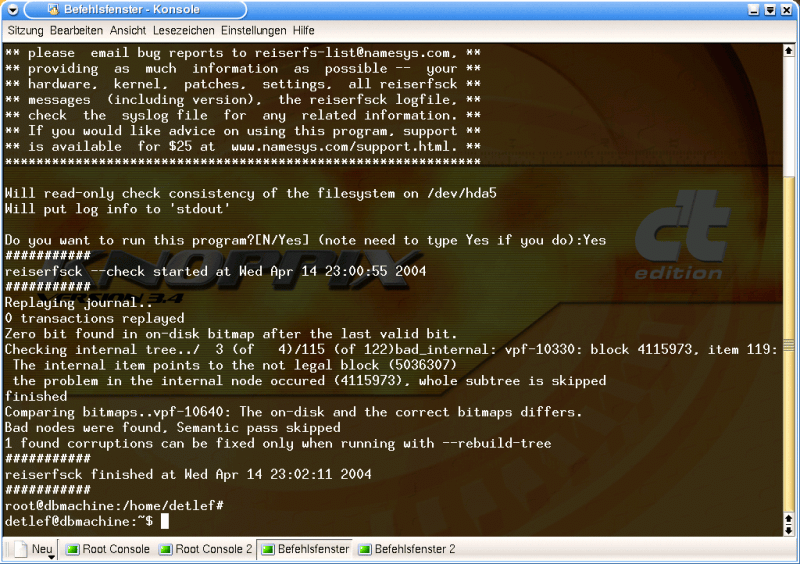

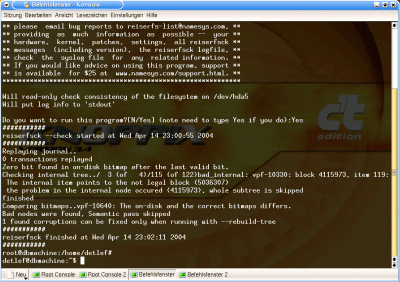

First, I called it up without changing anything. -check seems to be the right thing to do at the beginning. First the diagnosis, then the operation...

# reiserfsck -check

Konsole Bild 1
Bild 4, reiserfsck -check


I don't understand it all, but I do understand that reiserfsck found errors and says it can fix them. Sounds good.

I thought about it for a minute, then started the operation. Called up the scalpel using ...

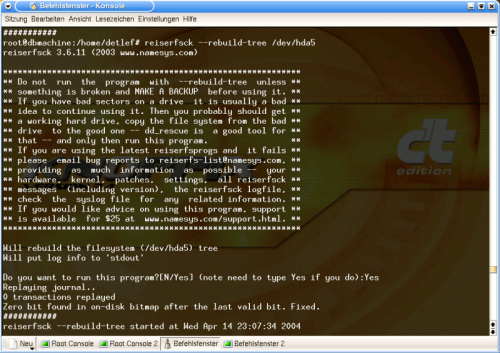

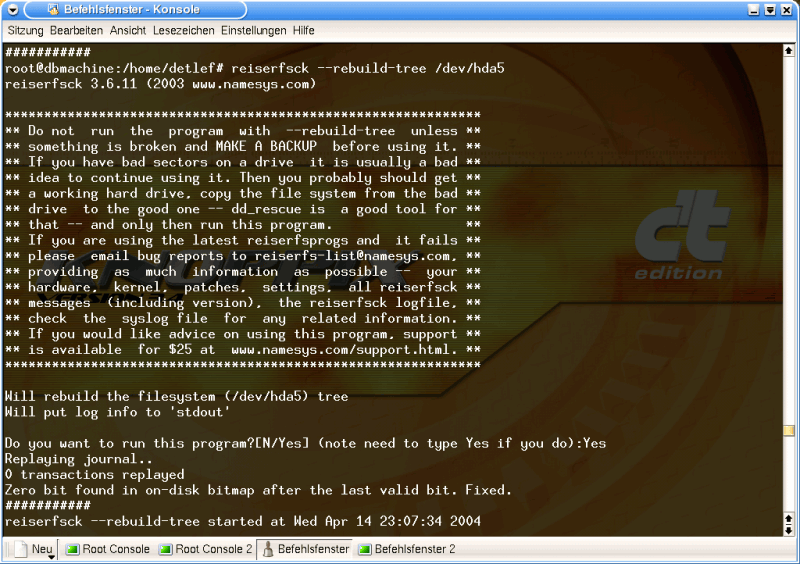

# reiserfsck --rebuild tree /dev/hda5

Console graphic 2
Graphic 5, reiserfsck --rebuild-tree


This makes me nervous. No wonder - I'm about to find out what I'll have to do in the next few weeks.
"Should the file system be restored now?" ... Yes, it should.
I get the good old 'replaying journal' message. It's this Good Samaritan that makes the restore possible - a kind of table of contents for all sub-partitions. Two lines later, reiserfsck comes across a faulty null bit and ... corrects it.

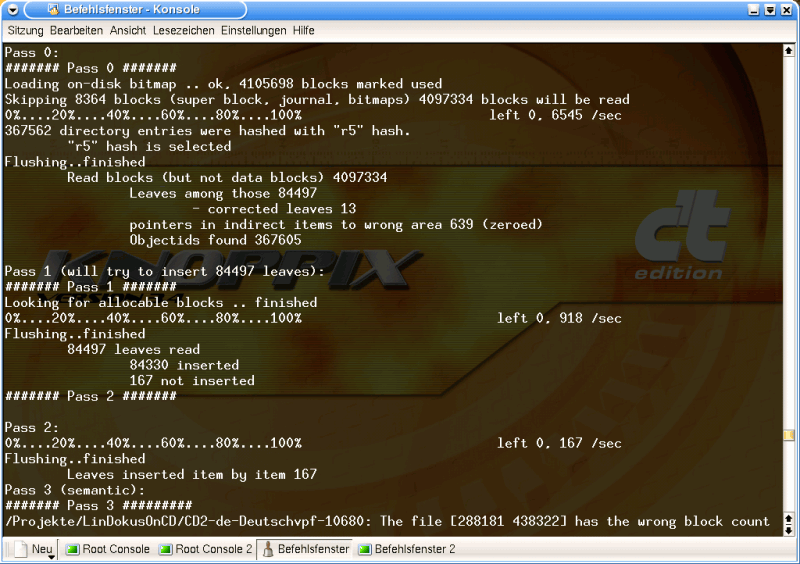

Next comes Pass 0 of the restore, visually separated on the console. This process takes ca. 15 minutes for my 20 GB ... a percentage display allows the user to keep an eye on progress.

Graphic 2 shows details of an error. What does it mean exactly? Hmm ... ask me something else. :)

Console graphic 3
Graphic 6, Pass 0 up to 2, 3 (beginning only)


On it goes ... Pass 1 is really fast. No data error messages.

Pass 2 is the same.

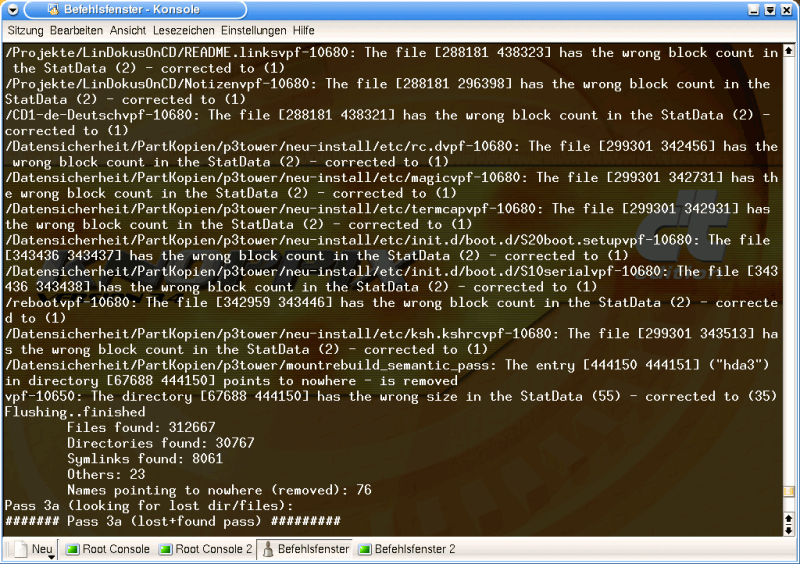

In Pass 3 I get inundated with data error messages. I recognise the files, they are from the SuSE documentation copy process. That proves that something went wrong with that specific copy process. Was it the KDE 3 conqueror or a bug in ReiserFS?

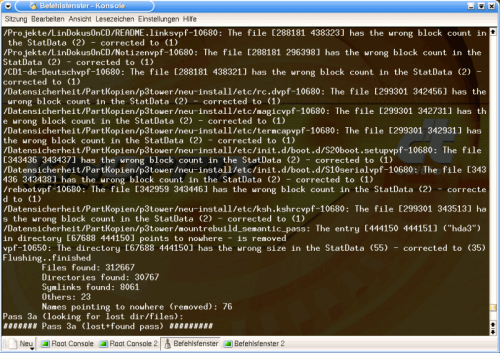

Console graphic 4
Graphic 7, Pass 3 (end)

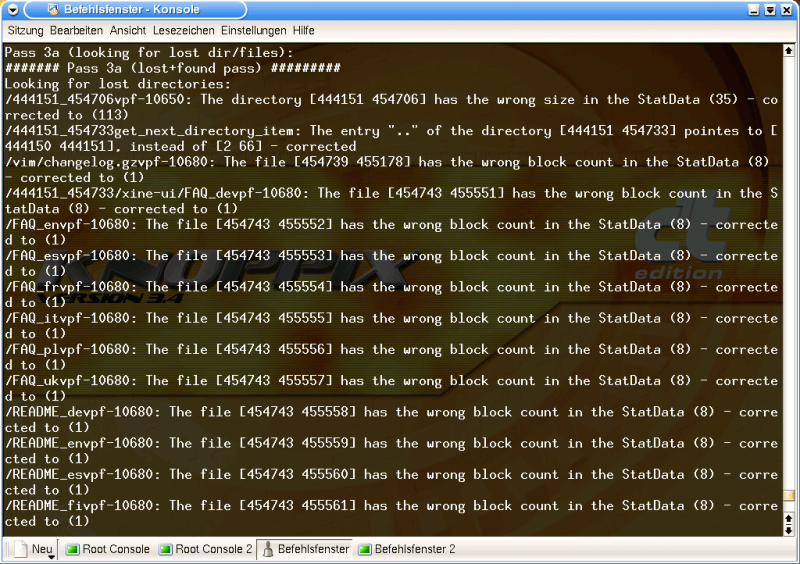

According to the description, a search is carried out in Pass 3a for lost files or directories.

Console graphic 5
Graphic 8, Pass 3a


The tool usually finds what it's looking for, specifies the error, and corrects the relevant entries, commenting them with a 'corrected to ...' at the end of the line.

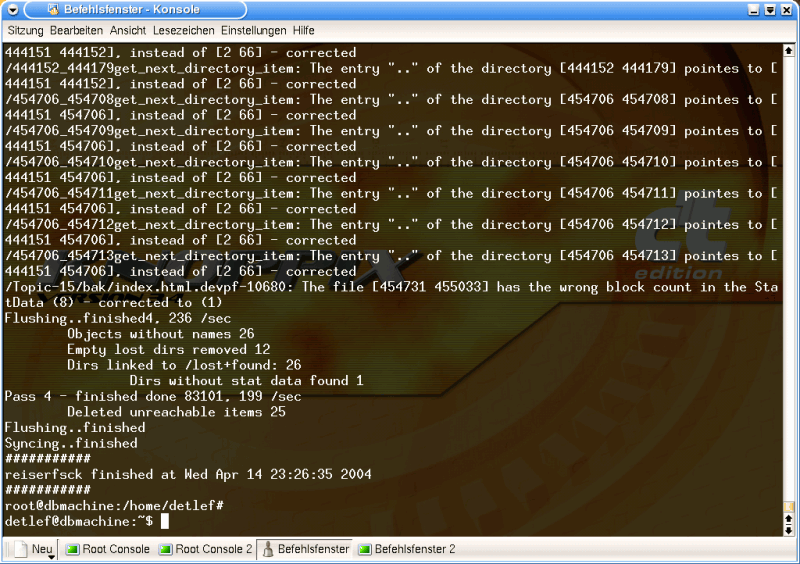

Then it gives a summary of its emergency rescue operation. In Pass 4, it gives the simple message that the synchronization (of the journal in its current state on the hard disk) has finished.

Console graphic 6
Graphic 9, Pass 4 and end


Now my data should be accessible again.
I get no messages during the mount - a sure sign on UNIX that a command has executed successfully. :-))



All's well that ends well?

And the conqueror is showing me my old familiar directories on partition hda5. Everything is back again ... or should I say, almost everything. A few of the copied files are missing - naturally. You can't expect a perfect result from a faulty process. I can copy them back over.

Today, the day after, I still haven't checked all the data on hda5. But it's very likely that everything was fully restored. The tool seemed very professional in active use!

It's now 16:30 hrs on D-Day+1. The alarm bell rang just 18 hours ago. The report (this one) is nearly finished - that's how successful the emergency rescue operation was.
I'm glad that I saved the progress of the 'console' after the recovery in a file yesterday. It meant I could include screenshots of the original 'accident photos' in this article.

P.S. (2 days later): no indication of any data loss. I work on the affected partition all the time.



Verdict

Data loss can also occur on a journal file system, but the chances of a full recovery are higher. JFs are reliable and easy to maintain.
A journal file system is a must for every Linux user (you'll forgive such a strong opinion in the free software world).

Most distributors now offer the user a journal file system as a default setting during the installation procedure.

And ... that means backup sinners have struck lucky and can get by without backing up their data.
However, this is not to advocate not backing things up.
So, always make backups!
